CEEG Custom Pad Mount Prefabricated Substation transformer

Brand: CEEG
Style: Pad Mount Transformer
Structural: T / L / H shape
Service: Customized Service
Request A Quote

Parameters Table-mrqt.png

Technical parameters of American pad-mounted substation

Type

Voltage combination

Coupling group number

No-load loss

On-load loss

Short circuit impedance

No-load current

High voltage(kV)

Tapping range

Low voltage(kV)

ZGS9-H(Z)-100

6
6.3
10
10.5

±5%
or
±2*2.5%

0.4

Yyn0
or
Dyn11

290

1500

4

1.6

ZGS9-H(Z)-125

340

1800

4

1.5

ZGS9-H(Z)-160

400

2200

4

1.4

ZGS9-H(Z)-200

480

2600

4

1.3

ZGS9-H(Z)-250

560

3050

4

1.2

ZGS9-H(Z)-315

670

3650

4

1.1

ZGS9-H(Z)-400

800

4300

4

1

ZGS9-H(Z)-500

960

5150

4

1

ZGS9-H(Z)-630

1200

6200

4.5

0.9

ZGS9-H(Z)-800

1400

1400

4.5

0.8

ZGS10-H(Z)-100

6
6.3
10
10.5

±5%
or
±2*2.5%

0.4

Yyn0
or
Dyn11

260

1500

4

1.5

ZGS10-H(Z)-125

305

1800

4

1.4

ZGS10-H(Z)-160

360

2200

4

1.3

ZGS10-H(Z)-200

430

2600

4

1.2

ZGS10-H(Z)-250

500

3050

4

1.1

ZGS10-H(Z)-315

600

3650

4

1

ZGS10-H(Z)-400

720

4300

4

0.9

ZGS10-H(Z)-500

860

5150

4

0.9

ZGS10-H(Z)-630

1080

6200

4.5

0.8

ZGS10-H(Z)-800

1260

7500

4.5

0.7

ZGS11-H(Z)-100

6
6.3
10
10.5

±5%
or
±2*2.5%

0.4

Yyn0
or
Dyn11

205

1500

4

1

ZGS11-H(Z)-125

240

1800

4

0.9

ZGS11-H(Z)-160

275

2200

4

0.8

ZGS11-H(Z)-200

330

2600

4

0.7

ZGS11-H(Z)-250

400

3050

4

0.7

ZGS11-H(Z)-315

480

3650

4

0.6

ZGS11-H(Z)-400

565

4300

4

0.6

ZGS11-H(Z)-500

680

5150

4

0.5

ZGS11-H(Z)-630

805

6200

4.5

0.5

ZGS11-H(Z)-800

980

7500

4.5

0.4

1. With the transformer as the core component, it integrates high-voltage control and protection components such as high-voltage load switches and fuses into the transformer tank, creating a compact structure.

2. The Pad Mount Transformer is even smaller in size, with a volume that is roughly equivalent to a conventional oil-immersed transformer of the same capacity, occupying only about one-third of the volume of a European-style box transformer of the same capacity.

3. There are no heat dissipation issues, making the Pad Mount Transformer more capable of handling overload operations.

4. Simplified configuration of high and low-voltage units results in lower manufacturing costs for Pad Mount Transformers.

5. If the Pad Mount Transformer is equipped with our group's high-flash-point transformer, it becomes even more suitable for high-temperature regions in the summer.

6. Using a sealed tank design, the Pad Mount Transformer eliminates the need for an oil conservator, reducing the routine maintenance workload for the transformer.

Pad Mount Transformer Features:

1. The transformer is oil-immersed.

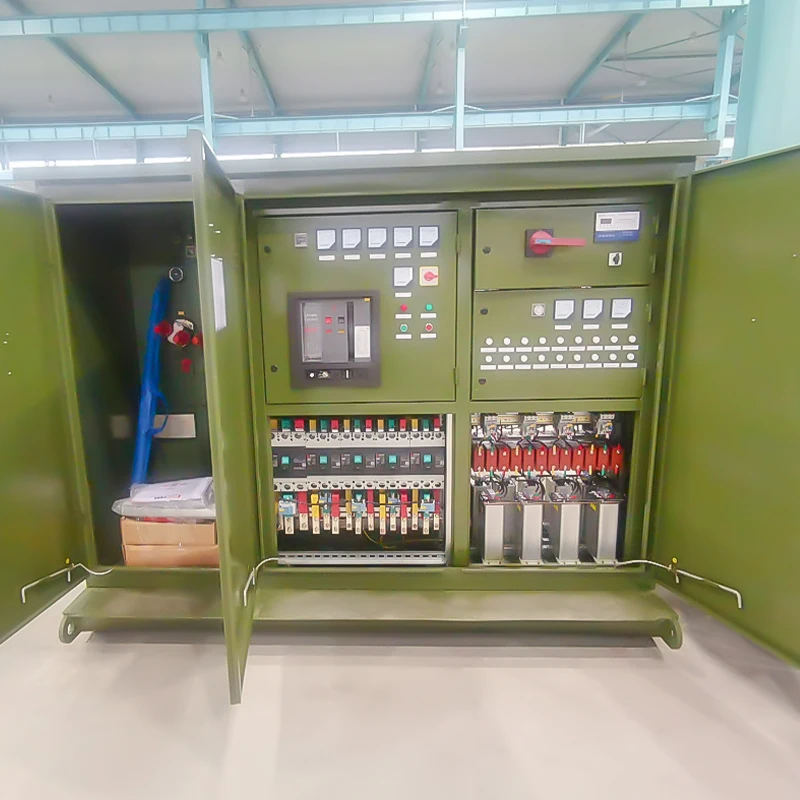

2. The product is divided into three parts: the transformer body, the high-voltage chamber, and the low-voltage chamber.

3. Using a full-range protective fuse, The high-voltage side employs a terminal-type oil-immersed load switch with a protective fuse.

4. Structural configurations include "T" shape and "L" shape, as well as "H" shape.

5. Load switches and fuses are installed inside the transformer oil tank, utilizing the transformer's insulating fluid as both insulating and cooling medium, resulting in a compact overall structure with excellent heat dissipation performance.

6. High-voltage side incoming connections utilize high-voltage bushings to facilitate external cable connections.

7. Conventional products have direct outgoing connections on the low-voltage side, with low-voltage solutions customized according to user requirements.

8. The enclosure is constructed from welded steel plates and undergoes anti-corrosion treatment, ensuring an aesthetically pleasing appearance.

9. The high-voltage chamber contains operable components such as load switches, transformer tap changers, and protective fuses. The enclosure is equipped with oil temperature gauges, oil level indicators, pressure relief valves, drain valves, oil sampling valves, outgoing terminals, and, as per user specifications, low-voltage systems, and automated monitoring systems.

production ability.png CEEG production ability 61.jpg

Our production base covers an area of more than 600 acres (40 hectares) with extensive facilities and a total construction area of 180,000 square meters. We have a professional team of more than 1,000 employees. We have advanced transformer production and testing equipment here to ensure that we provide customers with high-quality power transformer products.

We boast an array of cutting-edge equipment representing a high standard within the industry, including a complete set of shearing machines, fully automated winding machines, robot-operated stacking machines, the Hedrch Vacuum Casting Equipment, vacuum impregnation systems, air cushion transport vehicles, a fully enclosed production workshop with a cleanliness level of 100,000, 20-ton vertical winding machines, 10-ton horizontal winding machines, coal-oil gas phase drying equipment, and a 200-ton overhead crane. We adopt the latest technology and processes to ensure our products comply with international standards and customer needs.

We have a strong production capacity of 30 million kVA power transformers per year. This means we can cater to all sizes and types of power transformer needs, from small applications to large energy projects. No matter what specifications our customers require, we deliver them on time and support them with high quality and reliability.
