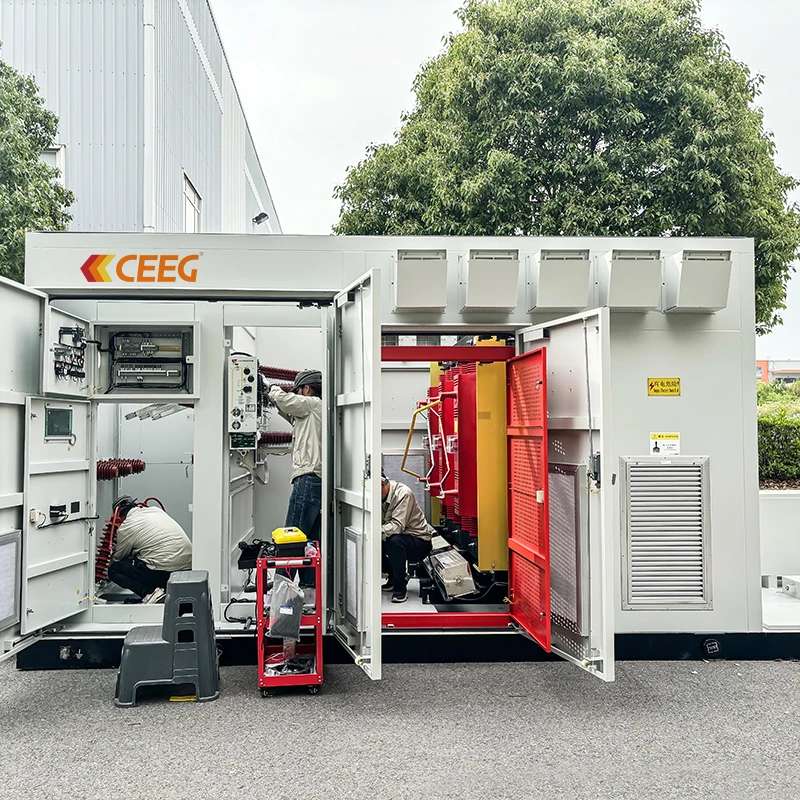

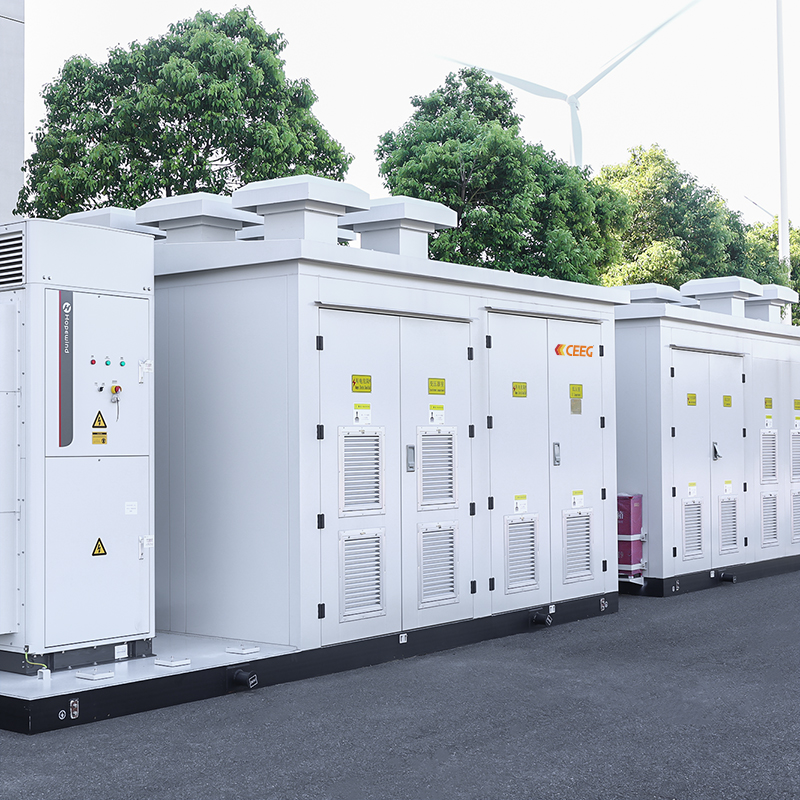

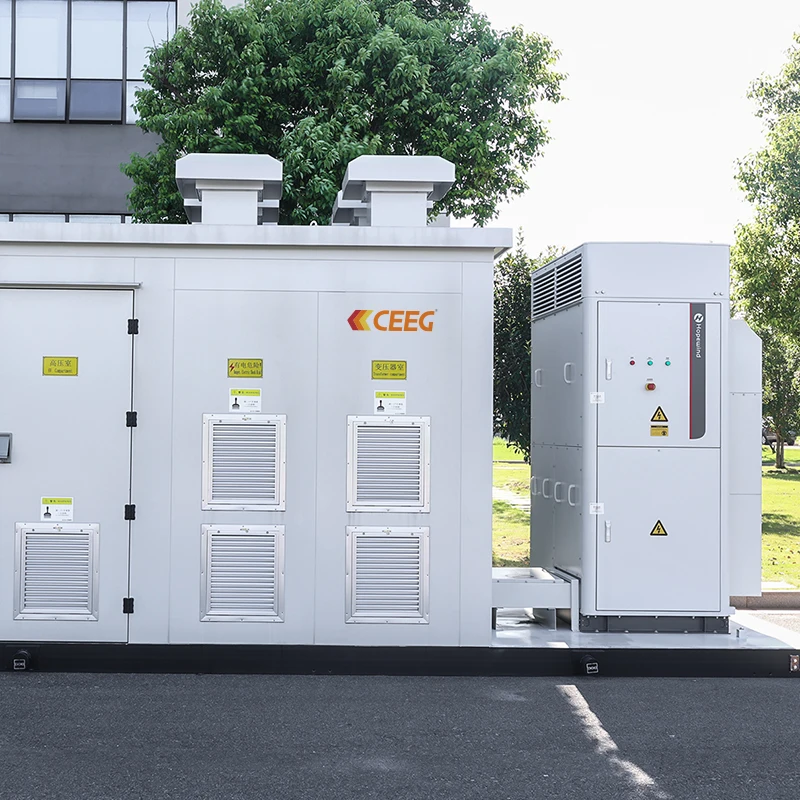

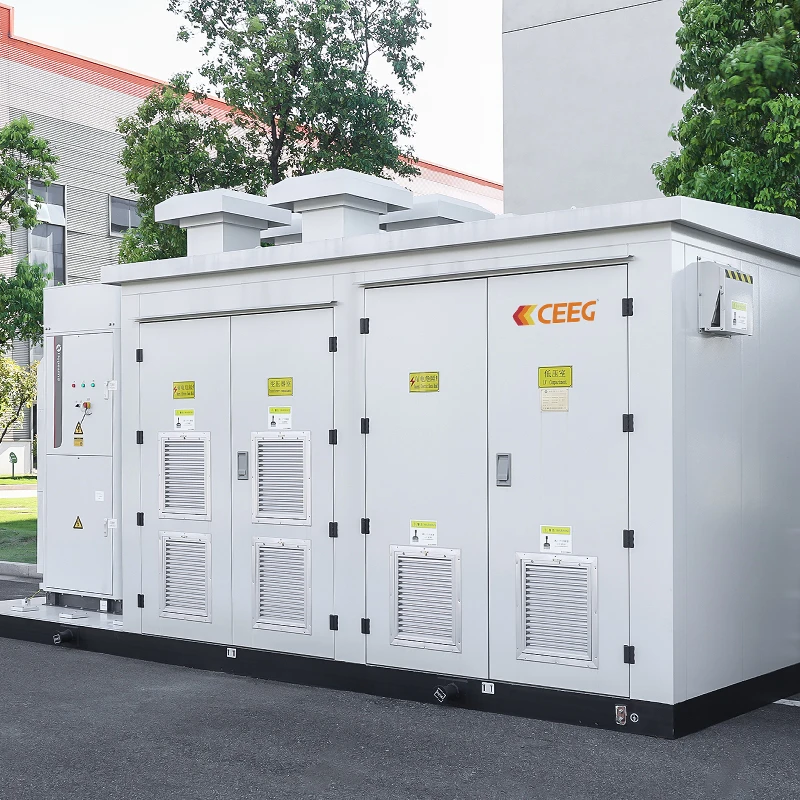

Composition of the Integrated Unit:

The step-up converter integrated unit consists of:

High-voltage switchgear cabinet

Power distribution transformer

Auxiliary transformer

Power & communications cabinet

Power Conversion System (PCS)

Technical Specifications:

PCS power ratings: commonly 2750 kVA, 3150 kVA, and 3450 kVA

DC (direct-current) voltage range: for example, 1000 – 1500 Vdc

Maximum DC: e.g., 3508 A, 3740 A, 3872 A

Transformer type: dry-type or oil-immersed

Transformer voltage ratio: e.g., 0.69 / (6 – 35) kV

Protection rating (ingress protection): IP55, IP65

Operating altitude: up to 4000 m above sea level

Communication protocols: Modbus-TCP, IEC 61850, IEC 104

Application Scenarios:

Grid stabilization Mitigates irregularities caused by demand fluctuations and ensures grid stability. During high-load periods, the system can be dispatched (e.g., via AGC, AVC) to support frequency regulation and load-shifting.

Cost saving for large electricity consumers: Large industrial users utilize the system to arbitrage between peak and off-peak electricity rates by charging during low-price periods and discharging during peak times.

Renewable-energy power plants: In large-scale wind or solar plants, the unit can store excess power and then release it smoothly into the grid, helping integrate variable renewable energy.

Our production base covers an area of more than 600 acres (40 hectares) with extensive facilities and a total construction area of 180,000 square meters. We have a professional team of more than 1,000 employees. We have advanced transformer production and testing equipment here to ensure that we provide customers with high-quality power transformer products.

We boast an array of cutting-edge equipment representing a high standard within the industry, including a complete set of shearing machines, fully automated winding machines, robot-operated stacking machines, the Hedrch Vacuum Casting Equipment, vacuum impregnation systems, air cushion transport vehicles, a fully enclosed production workshop with a cleanliness level of 100,000, 20-ton vertical winding machines, 10-ton horizontal winding machines, coal-oil gas phase drying equipment, and a 200-ton overhead crane. We adopt the latest technology and processes to ensure that our products comply with international standards and customer needs.

We have a strong production capacity of 30 million kVA power transformers per year. This means we are able to cater to all sizes and types of power transformer needs, from small applications to large energy projects. No matter what specifications our customers require, we deliver them on time and support them with high quality and reliability.
