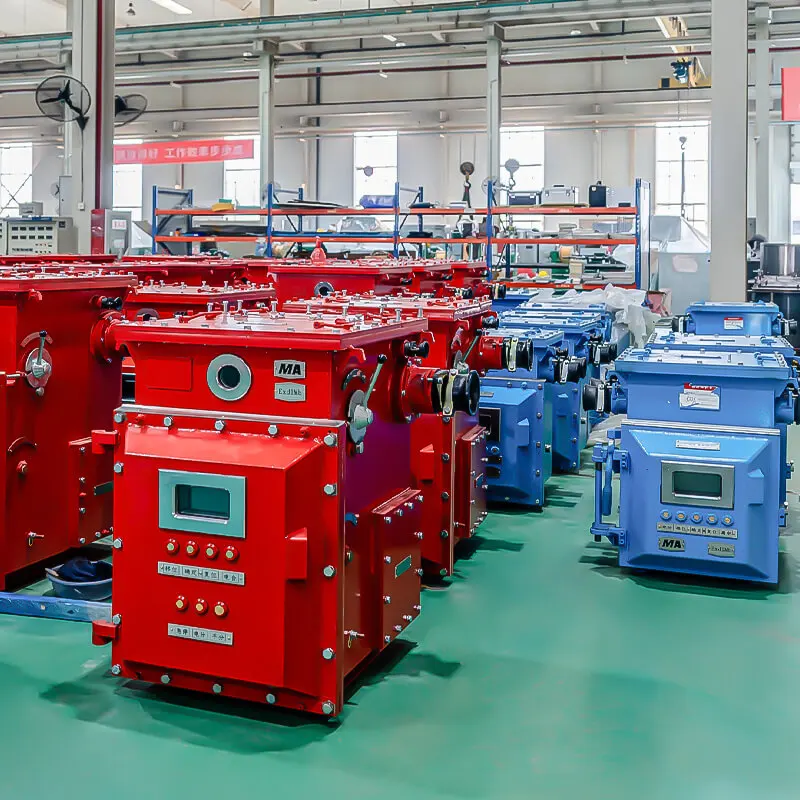

CEEG KBSG2-T Mining Flameproof Dry-Type Transformer

Brand:	CEEG
Phase:	Three Phase
Type:	Dry Type Transformer
Winding Type:	Multi-winding Transformer
Model:	KBSG2
Rated Capacity:	100kVA - 4000kVA
Nature of Business:	Manufacturer

mining transformer 23.jpg

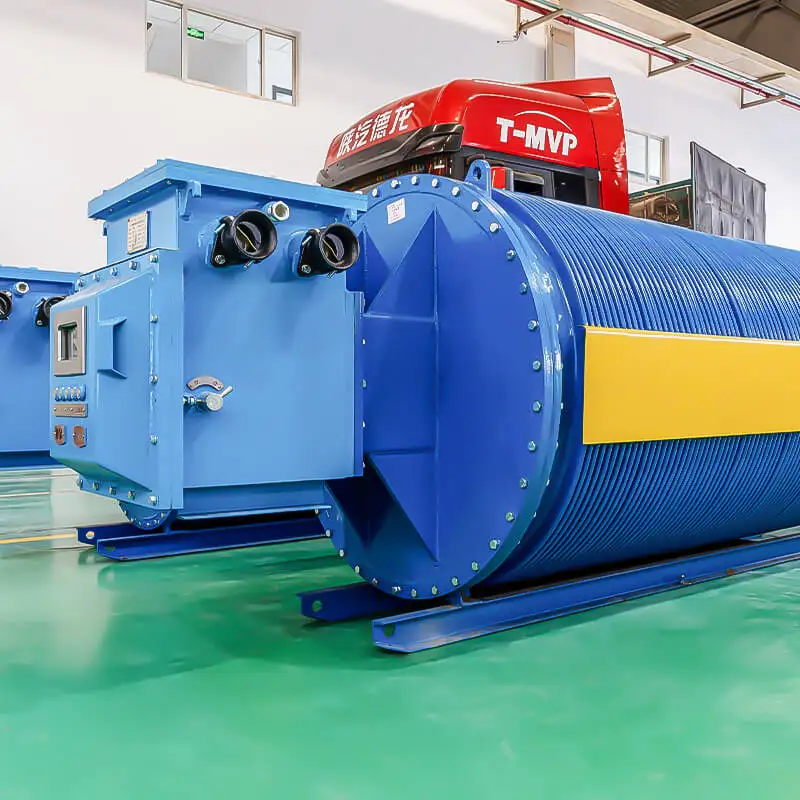

Innovative national patents featuring a unique full corrugated structure that enhances heat dissipation, a cylindrical flameproof enclosure that improves casing strength, capable of withstanding 1MPa pressure, and enhanced flameproof performance.

Utilizes the DuPont™ Nomex® paper insulation system for increased safety and reliability.

Incorporates advanced design and testing methods, along with a well-established production and processing process to ensure stable and reliable flameproof structural performance.

Maintenance-free, safe, fire-resistant, explosion-proof, and pollution-free, suitable for direct installation.

mining transformer.jpg

Model	Rated Capacity（kVA)	Primary Voltage	Secondary Voltage	Connection Section	No-Load Loss（W）	Load Loss（W）	Short Circuit Impedance	No-Load Current
KBSG2-T-100/6	100	6000±5%	693/400 1200/693	Yy0(d11)	520	920	4	2.5
KBSG2-T-200/6	200	6000±5%			820	1550	4	2
KBSG2-T-315/6	315	6000±5%			1100	2150	4	1.8
KBSG2-T-400/6	400	6000±5%			1300	2600	4	1.8
KBSG2-T-500/6	500	6000±5%			1500	3100	4	1.5
KBSG2-T-630/6	630	6000±5%			1800	3680	4	1.5
KBSG2-T-800/6	800	6000±5%	1200/693 3450	Yy0(d11) Yyn0	2050	4500	4	1
KBSG2-T-1000/6	1000	6000±5%			2350	5400	4	1
KBSG2-T-1250/6	1250	6000±5%			2750	6500	4	1
KBSG2-T-1600/6	1600	6000±5%			3350	8000	4	0.8
KBSG2-T-2000/6	2000	6000±5%	1200 3450	Yy0 Yyn0	3800	9500	4.5	0.6
KBSG2-T-2500/6	2500	6000±5%	1200 3450	Yy0 Yyn0	4500	10600	5	0.6
KBSG2-T-3150/6	3150	6000±5%	3450	Dyn11	5300	12500	5.5	0.6
KBSG2-T-4000/6	4000	6000±5%	3450	Dyn11	6100	14000	6	0.6
KBSG2-T-50/10	50	10000±5%	693/400 1200/693	Yy0(d11)	390	680	4	2.5
KBSG2-T-80/10	80	10000±5%			490	880	4	2.5
KBSG2-T-100/10	100	10000±5%			560	1050	4	2.5
KBSG2-T-125/10	125	10000±5%			650	1300	4	2.5
KBSG2-T-160/10	160	10000±5%			800	1500	4	2
KBSG2-T-200/10	200	10000±5%			950	1800	4	2
KBSG2-T-250/10	250	10000±5%			1100	2100	4	2
KBSG2-T-315/10	315	10000±5%			1300	2500	4	1.8
KBSG2-T-400/10	400	10000±5%			1500	3000	4	1.8
KBSG2-T-500/10	500	10000±5%			1750	3500	4	1.5
KBSG2-T-630/10	630	10000±5%			2000	4100	4	1.5
KBSG2-T-800/10	800	10000±5%	1200/693 3450	Yy0 Yyn0	2300	5100	4	1.2
KBSG2-T-1000/10	1000	10000±5%			2600	6100	4.5	1.2
KBSG2-T-1250/10	1250	10000±5%			3100	7400	4.5	1
KBSG2-T-1600/10	1600	10000±5%			3800	8500	5	1
KBSG2-T-2000/10	2000	10000±5%	1200 3450	Yy0 Yyn0	4500	9700	5	0.7
KBSG2-T-2500/10	2500	10000±5%	1200 3450	Yy0 Yyn0	5200	10800	5.5	0.7
KBSG2-T-3150/10	3150	10000±5%	3450	Dyn11	6100	12800	5.5	0.7
KBSG2-T-4000/10	4000	10000±5%	3450	Dyn11	7000	15000	6	0.7

project cases.png

production ability.png CEEG production ability 2.jpg

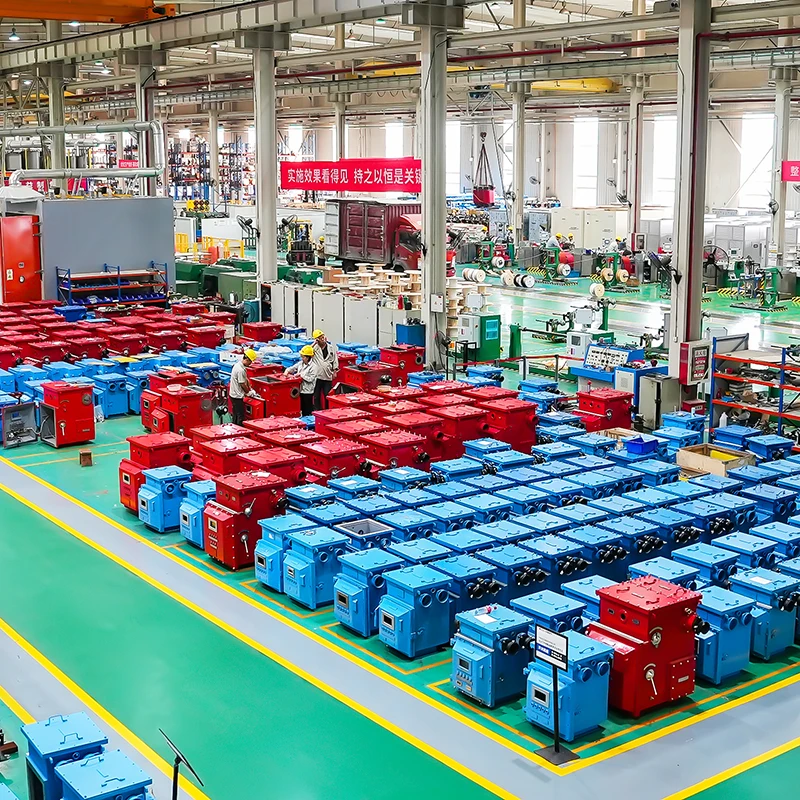

Our production base covers an area of more than 600 acres (40 hectares) with extensive facilities and a total construction area of 180,000 square meters. We have a professional team of more than 1,000 employees. We have advanced transformer production and testing equipment here to ensure that we provide customers with high-quality power transformer products.

We boast an array of cutting-edge equipment representing a high standard within the industry, including a complete set of shearing machines, fully automated winding machines, robot-operated stacking machines, the Hedrch Vacuum Casting Equipment, vacuum impregnation systems, air cushion transport vehicles, a fully enclosed production workshop with a cleanliness level of 100,000, 20-ton vertical winding machines, 10-ton horizontal winding machines, coal-oil gas phase drying equipment, and a 200-ton overhead crane. We adopt the latest technology and processes to ensure that our products comply with international standards and customer needs.

We have a strong production capacity of 30 million kVA power transformers per year. This means we can cater to all sizes and types of power transformer needs, from small applications to large energy projects. No matter what specifications our customers require, we deliver them on time and support them with high quality and reliability.
