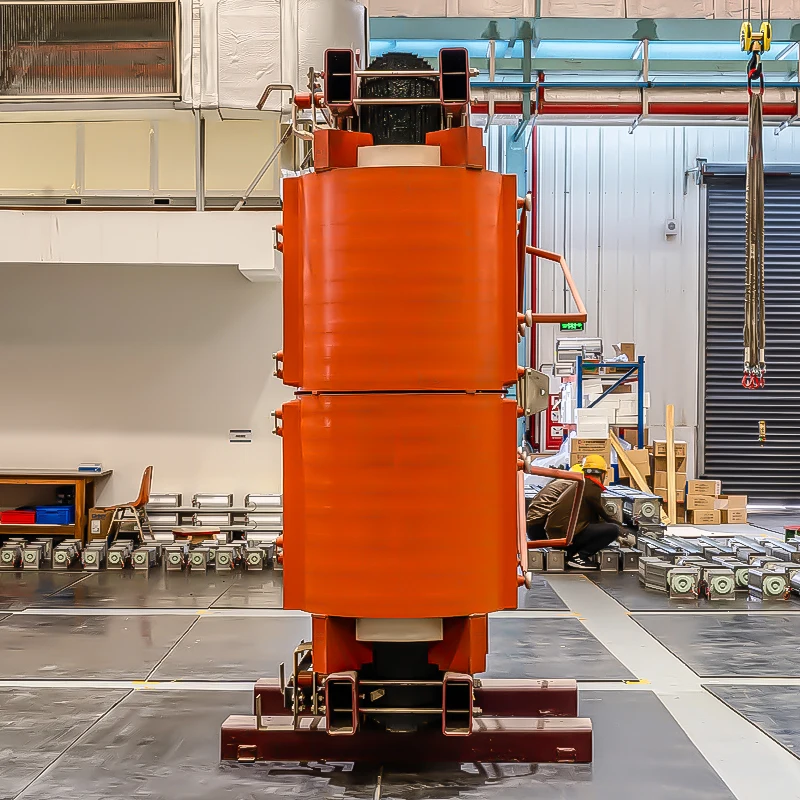

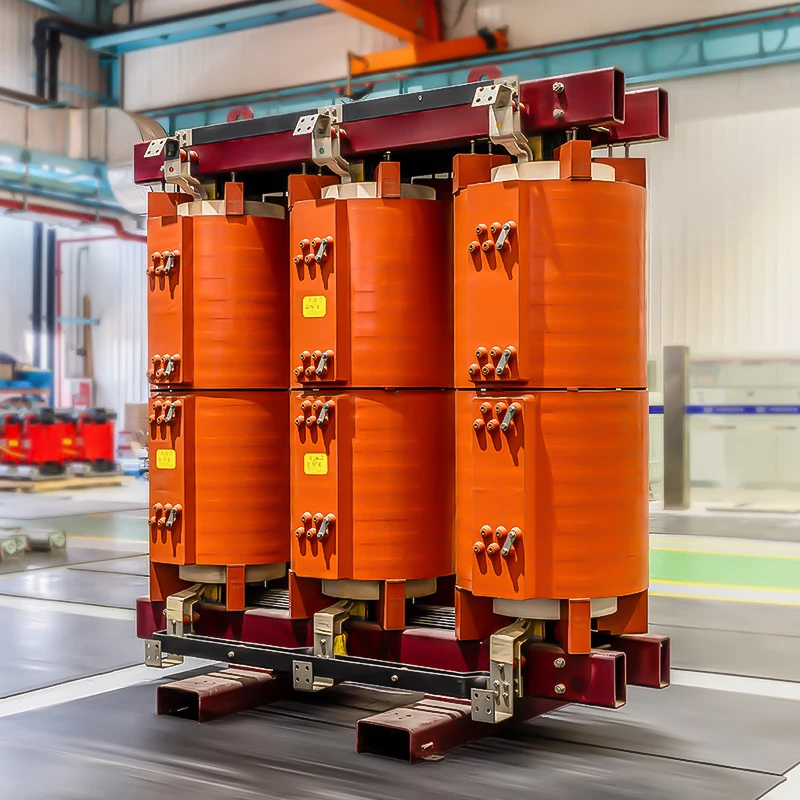

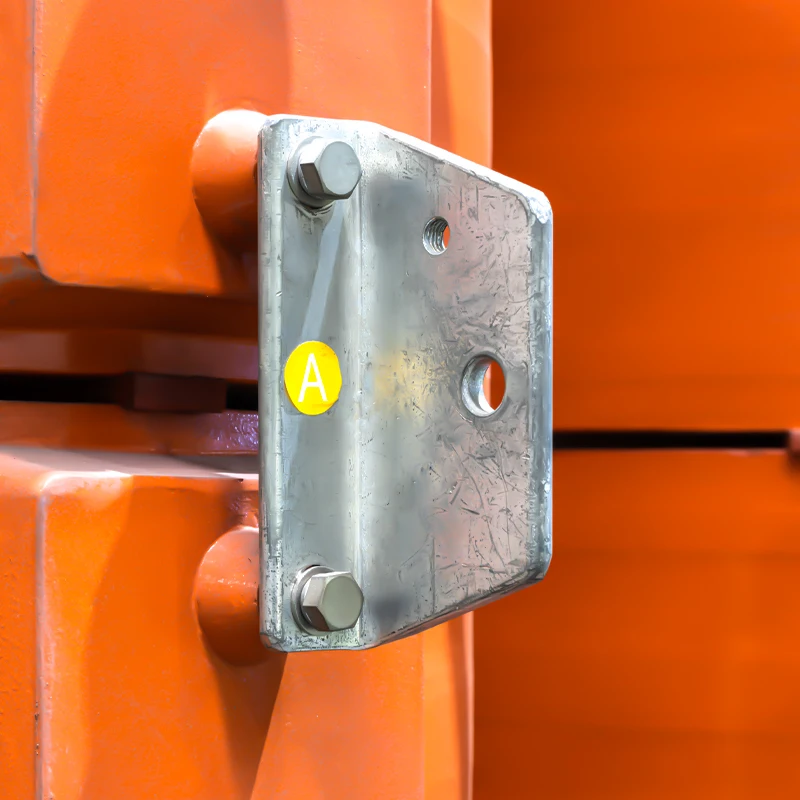

CEEG 10kV and 35kV Light Rail Traction Rectifier Transformers

Brand: CEEG
Type: Dry Type Transformer
Rated Voltage: 10kV / 35kV
Rated Capacity: 800kVA-4400kVA
Connection Groups: Dy5d0, Dy7d2
Service: Customized Service
Nature of Business: Manufacturer
Request A Quote

dry type transformer 10.jpg

A 24-pulse traction rectifier substation comprises two 12-pulse axial split traction rectifier transformers. These transformers employ the Y-shaped connection of the delta windings, run in parallel after full-wave rectification, and thus create a 24-pulse rectification substation system, resulting in lower harmonic content compared to a 12-pulse rectification system.

The product boasts low losses, minimal partial discharge, and reduced noise. It is insulated to withstand either Class F or Class H levels of heat resistance, with a service life exceeding 30 years. The product model is ZQSC(B)10-1600~4400/35, with connection groups of Dy5d0, Dy7D2, or as per user requirements.

Insulation Levels: LI 170 AC 70/LI 20 AC10.

ZQSC Series 10kV 800-3300kVA Traction Rectifier Transformers

Model

UK%

PO(W)

PK(W)

I0(%)

ZQSC-800/10

6.5

1794

5959

0.33

ZQSC-1000/10

6.5

1882

7360

0.28

ZQSC-1250/10

6.5

2719

8615

0.32

ZQSC-1600/10

6.5

3300

8864

0.27

ZQSC-1800/10

6.5

3397

10600

0.25

ZQSC-2000/10

6.5

3574

11094

0.25

ZQSC-2500/10

8

3943

13548

0.21

ZQSC-2750/10

8

4023

13917

0.2

ZQSC-3300/10

8

4070

15245

0.24

ZQSC Series 35kV 1600-4400kVA Traction Rectifier Transformers

Model

UK%

PO(W)

PK(W)

I0(%)

ZQSCB-1600/35

8

3600

15400

0.9

ZQSCB-2000/35

8

4200

18000

0.9

ZQSCB-2500/35

8

4800

21000

0.9

ZQSCB-2750/35

8

4900

22000

0.9

ZQSCB-3000/35

8

5700

23000

0.8

ZQSCB-3300/35

8

6200

25000

0.8

ZQSCB-4000/35

8

7000

29000

0.8

ZQSCB-4400/35

8

7500

31000

0.7

production ability.png CEEG production ability 2.jpgOur transformer production facility covers an area of over 40 hectares with a construction area of 180,000 square meters. It employs more than 1000 people and is equipped with a complete set of advanced transformer production and testing equipment, including cutting, vacuum casting, vacuum impregnation, and other facilities. It has an annual production capacity of 30 million kVA for power transformers. We boast an array of cutting-edge equipment representing a high standard within the industry, including a complete set of shearing machines, fully automated winding machines, robot-operated stacking machines, the Hedrch Hedrch Vacuum Casting Equipment, vacuum impregnation systems, air cushion transport vehicles, a fully enclosed production workshop with a cleanliness level of 100,000, 20-ton vertical winding machines, 10-ton horizontal winding machines, coal-oil gas phase drying equipment, and a 200-ton overhead crane. We adopt the latest technology and processes to ensure that our products comply with international standards and customer needs.

certificates.pngCEEG certificates 2-evku.jpg
