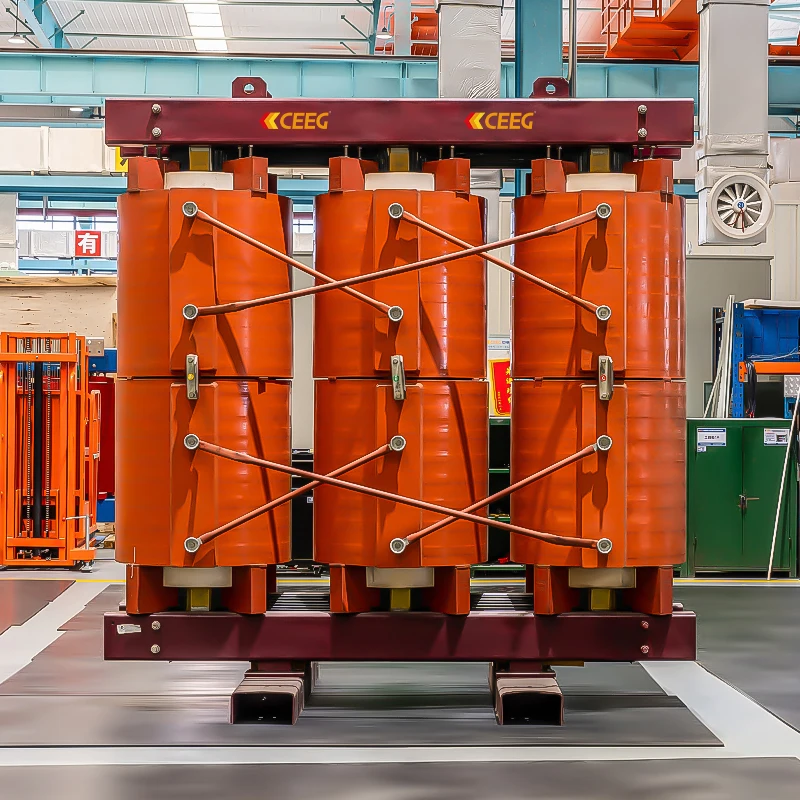

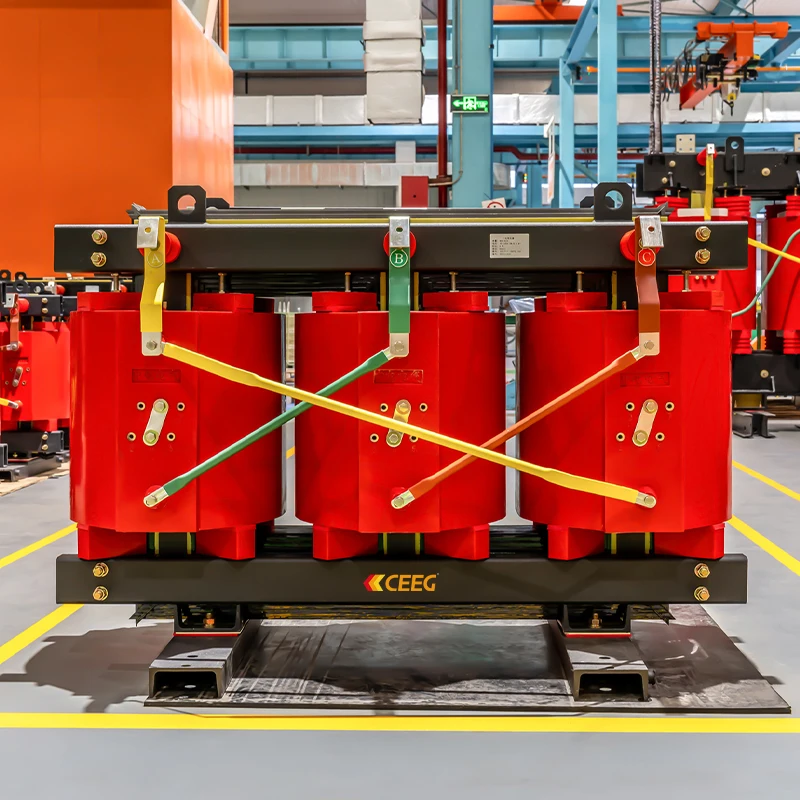

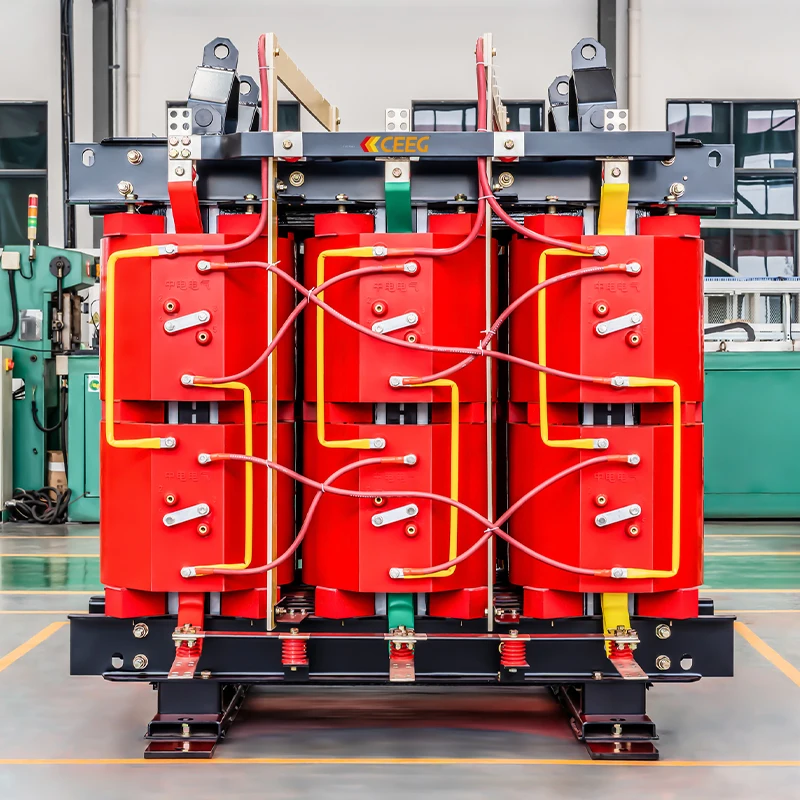

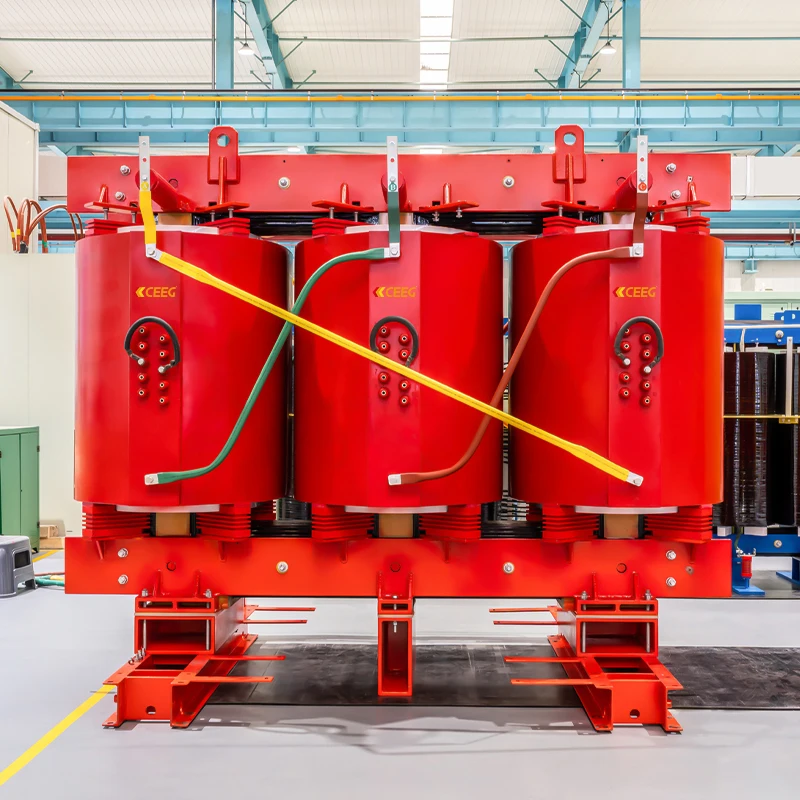

CEEG 200kVA - 2500kVA Dry-Type Rectifier Transformers

Brand: CEEG
Type: Dry Type Transformer
High Voltage: 6.3kV-38.5kV
Rated Capacity: 200kVA-2500kVA
Vector Group: Dyn11, Yyn0, Dd0
Winding Type: Multi-winding Transformer
Phase: Three-Phase
Service: Customized Service
Nature of Business: Manufacturer
Request A Quote

dry type transformer 7.jpg

Power conversion, which encompasses rectification, inversion, and frequency conversion, is a collective term for three operational modes, with rectification being the most widely employed. The majority of industrial rectified DC power sources are generated through rectifier equipment composed of rectifier transformers and rectifiers, connected to the AC power grid. The electrochemical industry is where rectifier transformers find their most extensive application. They are employed in the electrolysis of colored metal compounds to extract aluminum, magnesium, copper, and other metals, the electrolysis of salt to produce chlorine and alkali, and the electrolysis of water to produce hydrogen and oxygen.

1. Safety and Reliability: The transformer is constructed using non-toxic, flame-retardant epoxy resin, offering high mechanical strength, flame resistance, fire prevention, and environmental friendliness.

2. Convenient Installation: Dry-type rectifier transformers are delivered as complete units, allowing for immediate installation and efficient operation.

3. High Overload Capacity: The transformer's insulation is rated at class H, with a heat resistance temperature reaching 180°C. It can handle maximum overloads of up to 200%

4. Low Noise: Noise levels are reduced by 3-5 decibels compared to national standards.

5. Cost Savings: Dry-type rectifier transformers can be installed in conjunction with electrical equipment such as rectifiers, eliminating the need for a separately designed distribution room. This saves space and reduces initial investments.

6. Diverse Range: Our product offerings are comprehensive, covering specialized transformers in various fields, including rectifier transformers, electric furnace transformers, and variable frequency transformers.

7. Tailor-Made Solutions: We can accommodate specific customer requirements, offering flexible design and rapid responses.

8. Authoritative Certification: Our products have received authoritative certification from the National Electrical Product Quality Supervision and Inspection Center.

rectifier transformer-hfhj.jpg

General Rectifier Transformer

Model

Capacity(KVA)

Rated Voltage(KV)

Tapping Range

Vector Group

Short Circuit Impedance

Efficiency

Weight(kg)

Gauge(mm)

Net Side

Valve Side

ZBSCB10

200

10
6.3

0.4
0.66
0.69

2*2.5%

Dyn11
Yyn0
Dd0

4.0

≥0.97

1250

550 x 550

ZBSCB10

250

4.0

≥0.97

1430

550 x 550

ZBSCB10

315

4.0

≥0.97

1570

660 x 660

ZBSCB10

400

4.0

≥0.98

1750

660 x 660

ZBSCB10

500

4.0

≥0.98

1970

820 x 820

ZBSCB10

630

6.0

≥0.98

2250

820 x 820

ZBSCB10

800

6.0

≥0.98

2590

820 x 820

ZBSCB10

1000

6.0

≥0.98

2940

820 x 820

ZBSCB10

1250

6.0

≥0.98

3420

820 x 820

ZBSCB10

1600

6.0

≥0.98

3830

820 x 820

ZBSCB10

2000

6.0

≥0.99

4500

820 x 820

ZBSCB10

2500

6.0

≥0.99

5350

820 x 820

ZBSCB10

500

35
36
37
38.5

6.0

≥0.98

2680

820 x 820

ZBSCB10

630

6.0

≥0.98

3300

820 x 820

ZBSCB10

800

6.0

≥0.98

3810

820 x 820

ZBSCB10

1000

6.0

≥0.98

4650

1070 x 1070

ZBSCB10

1250

6.0

≥0.98

5250

1070 x 1070

ZBSCB10

1600

6.0

≥0.98

5750

1070 x 1070

ZBSCB10

2000

6.0

≥0.99

6380

1070 x 1070

ZBSCB10

2500

6.0

≥0.99

7390

1070 x 1070

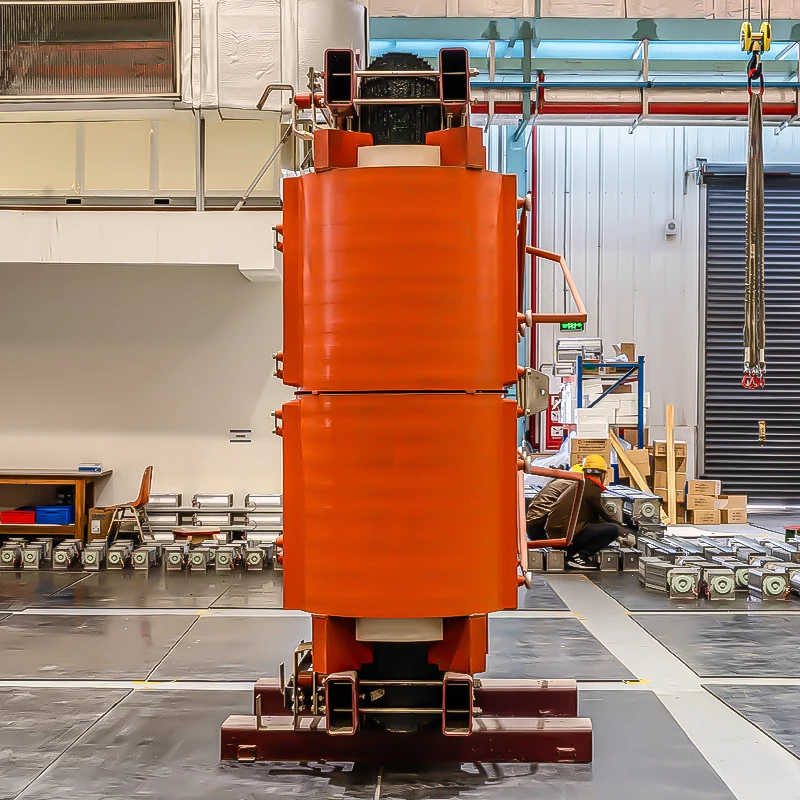

Traction Rectifier Transformer

Model

Capacity(KVA)

Rated Voltage(KV)

Tapping Range

Vector Group

Short Circuit Impedance

Efficiency

Weight(kg)

Gauge(mm)

Net Side

Valve Side

ZQSC-800/10

800

10
6.3

0.66
0.69
0.96
1.10
3.0

±2*2.5%

Dy11d0

6.0
7.0
8.0
10.5
12.5

≥0.96

3500

820 x 820

ZQSC-1000/10

1000

4330

820 x 820

ZQSC-1250/10

1250

4900

820 x 820

ZQSC-1600/10

1600

4300

820 x 1070

ZQSC-1800/10

1800

5100

820 x 1070

ZQSC-2000/10

2000

6000

1070 x 1070

ZQSC-2500/10

2500

6700

1070 x 1070

ZQSC-2750/10

2750

7100

1070 x 1070

ZQSC-3300/10

3300

8200

1070 x 1070

ZQSC-1600/35

1600

35
33

5900

820 x 1070

ZQSC-2000/35

2000

6500

1070 x 1070

ZQSC-2500/35

2500

7500

1070 x 1070

ZQSC-2750/35

2750

8600

1070 x 1070

ZQSC-3000/35

3000

9100

1070 x 1070

ZQSC-3300/35

3300

9800

1070 x 1070

ZQSC-4000/35

4000

10800

1070 x 1070

ZQSC-4400/35

4400

11900

1070 x 1070

production ability.png CEEG production ability 2.jpgOur production base covers an area of more than 600 acres (40 hectares) with extensive facilities and a total construction area of 180,000 square meters. We have a professional team of more than 1,000 employees. We have advanced transformer production and testing equipment here to ensure that we provide customers with high-quality power transformer products.

We boast an array of cutting-edge equipment representing a high standard within the industry, including a complete set of shearing machines, fully automated winding machines, robot-operated stacking machines, the Hedrch Vacuum Casting Equipment, vacuum impregnation systems, air cushion transport vehicles, a fully enclosed production workshop with a cleanliness level of 100,000, 20-ton vertical winding machines, 10-ton horizontal winding machines, coal-oil gas phase drying equipment, and a 200-ton overhead crane. We adopt the latest technology and processes to ensure our products comply with international standards and customer needs.

We have a strong production capacity of 30 million kVA power transformers per year. This means we can cater to all sizes and types of power transformer needs, from small applications to large energy projects. No matter what specifications our customers require, we deliver them on time and support them with high quality and reliability.

certificates.pngCEEG certificates.jpg
