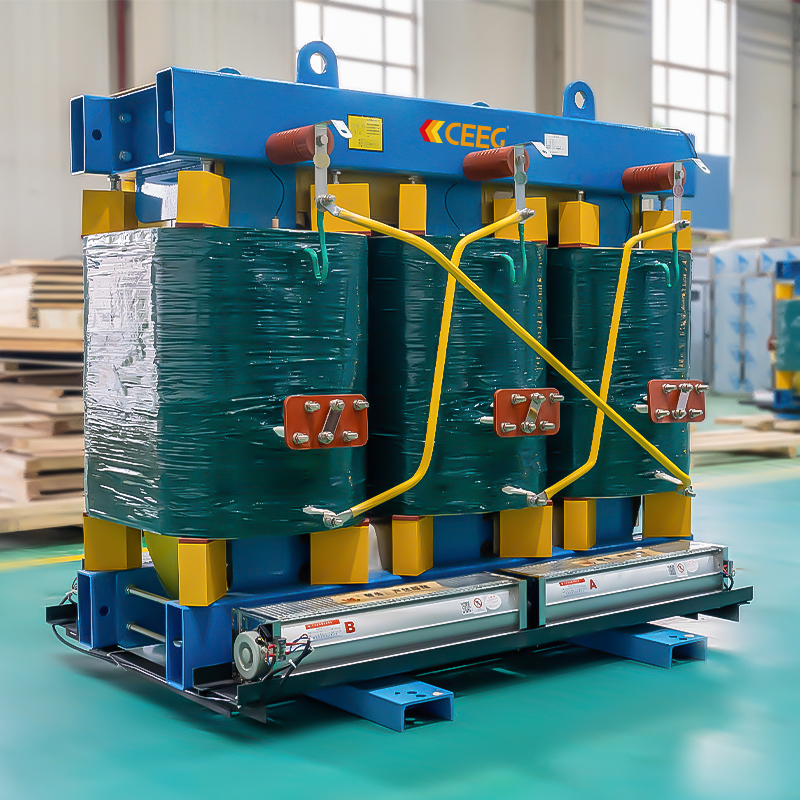

CEEG 250kVA - 2500kVA Amorphous Alloy Three-Phase Three-Limb Dry-Type (Core-Type) Transformer

Brand: CEEG
Type: Dry Type Transformer
Phase: Three-Phase
Core: Amorphous Alloy
Rated Capacity: 200kVA-2500kVA
Insulation Level: LI75 AC35 / LI0 AC3
Service: Customized Service
Nature of Business: Manufacturer
Request A Quote

dry type transformer CEEG.jpg

Compared to conventional transformers, a 2500kVA amorphous alloy transformer can save 21,000 kWh of electricity annually. Taking 50 units as an example, this translates to an annual electricity savings of 1.05 million kWh and a reduction in coal consumption by 420 tons. Additionally, it contributes to a reduction in carbon dioxide emissions by approximately 1,050 tons.

Introduction to Amorphous Alloy Transformers

Amorphous alloy transformers, developed in the 1970s, are a new type of electrical transformer that utilizes amorphous alloy instead of silicon steel as the core material. They exhibit a significant reduction in no-load losses, around 70%-80% lower than silicon steel core transformers, and a drop of approximately 85% in no-load current. These transformers are currently among the most energy-efficient distribution transformers available. They are suitable for applications where distribution efficiency is low, and there are stringent requirements for fire resistance, such as rural electrical grids, high-rise buildings, commercial centers, subways, airports, stations, industrial and mining enterprises, and power plants.

Amorphous Alloy Ribbon

Amorphous alloy ribbon is created by synthesizing elements like iron, cobalt, carbon, silicon, and boron in specific proportions. It is then rapidly cooled under high-speed spinning at 10°C/S during high-temperature melting. This process eliminates distinct crystalline boundaries in the metal, resulting in an irregular amorphous structure.

SCRBH dry type transformer.jpg

SCR(B)H Series NX1 Energy Efficiency Three-Phase Three-Limb Amorphous Alloy Dry-Type Distribution Transformer

Rated Capacity: 200kVA-2500 kVA

Connection Group Designation: Dyn11 or Yyn0

High Voltage (kV): 10; Low Voltage (kV): 0.4

Insulation Level: LI75AC35/LI0AC3

Rated Capacity (kVA)

No-Load Loss (W)

Load Loss

No-Load Current (%)

UK (%)

LPA (AN)dB

100℃(B)

120℃(F)

145℃(H)

200

140

2135

2275

2440

0.4

4

50

250

160

2330

2485

2665

0.4

4

50

315

195

2945

3125

3355

0.3

4

52

400

215

3375

3590

3850

0.3

4

52

500

250

4130

4390

4705

0.3

4

53

630

290

5050

5365

5760

0.3

6

54

800

335

5895

6265

6715

0.3

6

55

1000

385

6885

7315

7885

0.2

6

55

1250

455

8190

8720

9335

0.2

6

57

1600

530

9945

10555

11320

0.2

6

58

2000

700

12240

13005

14005

0.2

6

60

2500

840

14535

15445

16605

0.2

6

60

SCR(B)H Series NX2 Energy Efficiency Three-Phase Three-Limb Amorphous Alloy Dry-Type Distribution Transformer

Rated Capacity: 200kVA-2500 kVA

Connection Group Designation: Dyn11 or Yyn0

High Voltage (kV): 10; Low Voltage (kV): 0.4

Insulation Level: LI75AC35/LI0AC3

Rated Capacity (kVA)

No-Load Loss (W)

Load Loss

No-Load Current (%)

UK (%)

LPA (AN)dB

100℃(B)

120℃(F)

145℃(H)

200

170

2135

2275

2440

0.4

4

50

250

195

2330

2485

2665

0.4

4

50

315

235

2945

3125

3355

0.3

4

52

400

265

3375

3590

3850

0.3

4

52

500

305

4130

4390

4705

0.3

4

53

630

350

5050

5365

5760

0.3

6

54

800

410

5895

6265

6715

0.3

6

55

1000

470

6885

7315

7885

0.2

6

55

1250

550

8190

8720

9335

0.2

6

57

1600

645

9945

10555

11320

0.2

6

58

2000

850

12240

13005

14005

0.2

6

60

2500

1020

14535

15445

16605

0.2

6

60

Unique Amorphous Alloy Design, Equipment, and Manufacturing Process

Design: Adopt advanced electromagnetic design optimization software to improve the accuracy and speed of amorphous alloy dry-type transformer design, and realize design automation and optimization. Powerful simulation analysis capabilities, for each series of products, through simulation analysis of flow field, temperature field, leakage magnetic field, short-circuit force, etc., to ensure product safety and reliability.

Iron Core: Using high-quality amorphous strip materials to create Three-Phase Three-Limb cores, subjected to annealing under the influence of a direct current magnetic field to achieve outstanding characteristics of low iron loss and low excitation current. The core surface is coated with a special resin to prevent moisture and corrosion. The core structure is simple, with high mechanical strength, resistance to high-order harmonics, and 70% to 80% lower iron loss compared to conventional products.

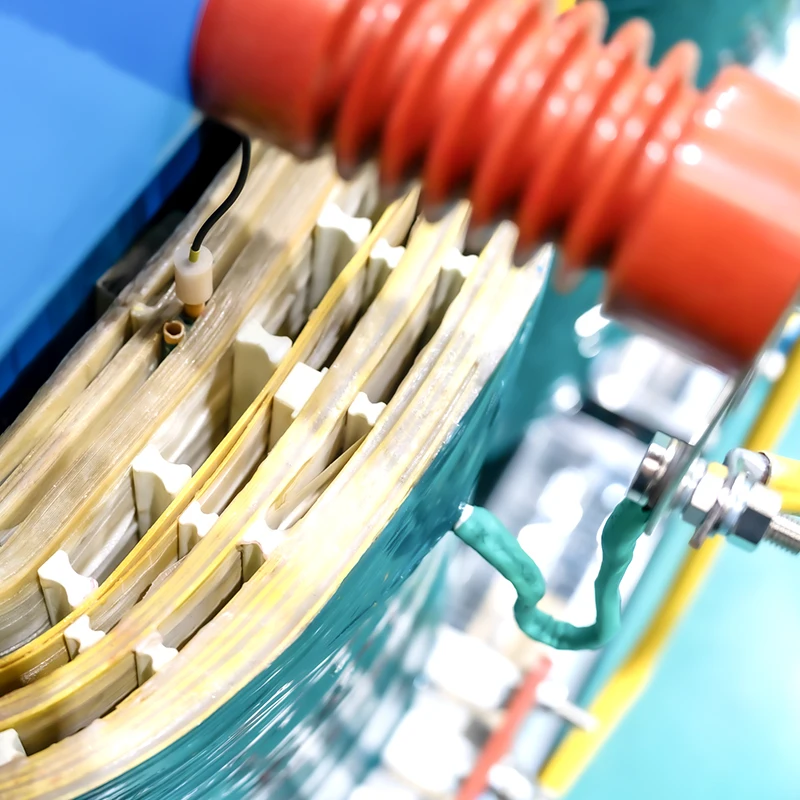

Low Voltage Foil Winding Coils: Employ imported high-quality copper foil and H-class insulation materials wound on molded insulation cylinders. Layer insulation is made of NOMEX paper, and VPI vacuum pressure impregnation solidifies it into a sturdy whole. The upper and lower ends are sealed with resin. The copper bars and foils are welded using specialized equipment. These coils exhibit high mechanical strength, strong short-circuit resistance, and excellent resistance to dust, moisture, and salt spray.

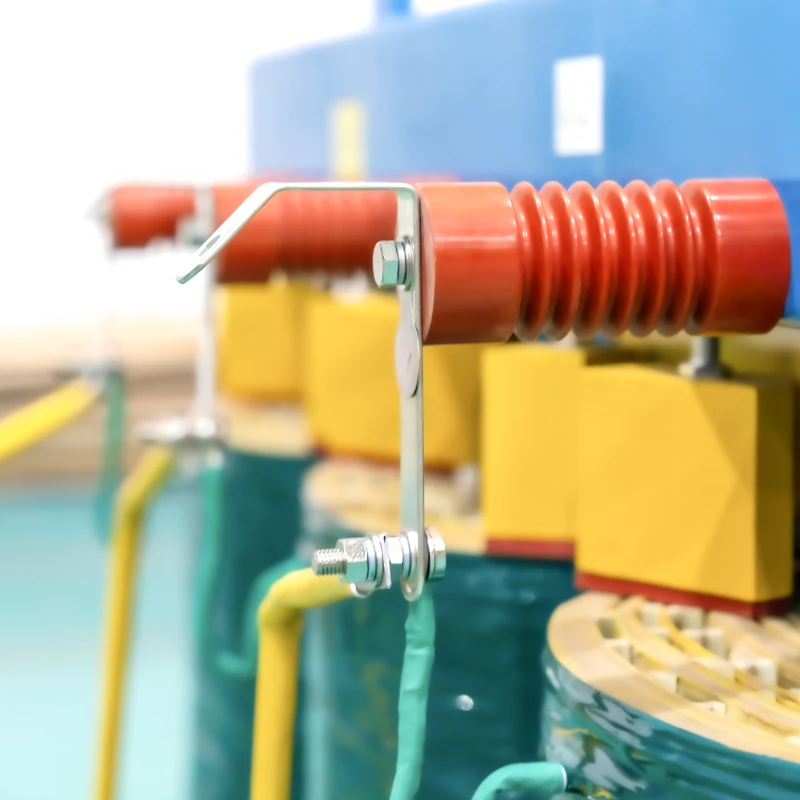

High Voltage Winding Coils: Using a multi-layer segmented cylindrical design with a longitudinal multi-channel structure. They exhibit strong resistance to heat and shock, as well as excellent impulse withstand capability. The conductor is composed of NOMEX paper-wrapped flat copper wire, with NOMEX paper used for layer insulation and H-class material for end insulation. After VPI vacuum pressure impregnation, the coils undergo high-temperature baking for curing. The upper and lower ends are sealed with resin, ensuring good heat dissipation and preventing cracking.

Assembly: Utilize the coil as the load-bearing main body, which is supported on a separate winding system and fixed by compression. The iron core employs a suspended structure so that the iron core is not under pressure, which reduces the influence of radial shrinkage and expansion on the iron core when the transformer is short-circuited. The overlapping part of the iron core adopts a special glue end-sealing process to ensure the minimum force on the iron core.
