CEEG PSC(BF)D Offshore Platform Transformers (10kV)
CEEG PSC(BF)D Offshore Platform Transformers (10kV)
CEEG PSC(BF)D Offshore Platform Transformers (10kV)
CEEG PSC(BF)D Offshore Platform Transformers (10kV)
CEEG PSC(BF)D Offshore Platform Transformers (10kV)
CEEG PSC(BF)D Offshore Platform Transformers (10kV)
CEEG PSC(BF)D Offshore Platform Transformers (10kV)
CEEG PSC(BF)D Offshore Platform Transformers (10kV)

CEEG PSC(BF)D Offshore Platform Transformers (10kV)

Brand: CEEG
Rated Capacity: 315kVA-8000kVA
Type: Dry-Type
Model: PSC(BF)D Series
Application: Offshore Platform
Vector Group: Dyn11or others
Service: Customized Service
Nature of Business: Manufacturer
Request A Quote

product introduction-kvpr.pngWe produce marine and offshore platform transformers with low voltage (1kV) and medium voltage (10kV). Our transformer products have obtained Product Type Approval from CCS (China Classification Society) and Factory Approval from BV (Bureau Veritas). We can provide product certificates from major classification societies, including CCS, ABS, DNV-GL, BV, LR, RINA, and NK.

In 2001, CEEG signed a strategic cooperation agreement with DuPont, leveraging DuPont's advanced and mature RAY-LITE transformer core technology. The open-type transformers produced by CEEG have consistently held a leading position in the industry.

In 2010, on the occasion of CEEG's 20th anniversary, the company once again collaborated with DuPont, signing a trademark licensing agreement for the DuPont NOMEX brand. In the future, the DuPont NOMEX insulation system will be applied across the entire product range at CEEG, marking a new beginning in the brand alliance between CEEG and DuPont.

In 2020, CEEG and DuPont signed another strategic cooperation agreement, commemorated with a signing ceremony in Yangzhong Linjiang Industrial Park.

Parameters Table-mrqt.png

PSC(BF)D Series Offshore Platform Transformers (10kV)

Model

Rated Capacity (KVA)

No-Load Loss (W)

Load Loss (W 75℃)

No-Load Current (%)

Load Loss (%)

PSCD-315/10

315

110

4080

1.8

4

PSCD-400/10

400

1220

4690

1.8

4

PSCD-500/10

500

1450

5740

1.8

4

PSCBFD-630/10

630

1620

7010

1.6

6

PSCBFD-800/10

800

1900

8180

1.6

6

PSCBFD-1000/10

1000

2210

9560

1.4

6

PSCBFD--1250/10

1250

2610

11400

1.4

6

PSCBFD--1600/10

1600

32060

13800

1.4

6

PSCBFD--2000/10

2000

4150

17000

1.2

6

PSCBFD--2500/10

2500

5000

20200

1.2

6

PSCBFD--3150/10

3150

5400

24000

1

6

PSCBFD--3500/10

3500

5800

28000

1

7.5

PSCBFD--4000/10

4000

6500

34000

0.8

8

PSCBFD--5000/10

5000

7800

42000

0.8

8

PSCBFD--6300/10

6300

8960

47000

0.6

8

PSCBFD--8000/10

8000

10220

53000

0.6

9

Primary rated voltage (kV): 11, 10.5, 10, 6.6, 6.3, 6, 3.3, 3 or others
 Secondary rated voltage (kV): 0.45, 0.4 or others
 Tapping Range: ±2x2.5%, ±5%
Vector Group:  Dyn11or others

performance features-wbbk.png1. Modular cabinet: The cabinet adopts a modular assembly, making installation convenient and fast.

2. Noise reduction: Utilizing a core screw structure significantly reduces noise.

3. Special processes: Multiple impregnation of coils and special processes for electrical and mechanical connections enhance "three-proof" performance.

4. 45° cold-rolled silicon steel sheets: High-quality cold-rolled silicon steel sheets are used for the core material, meticulously stacked at a 45° angle.

5. Filling box: The transformer's cabinet has a filling box for power cable entry and exit. The filling box is located on the left or right side. For transformers with a capacity of 500kVA and above, the entry and exit of cables are generally from the bottom, with cable holes on the transformer base and devices to prevent cable damage and secure the cables.

Superb insulation with three-proof and anti-vibration capabilities.

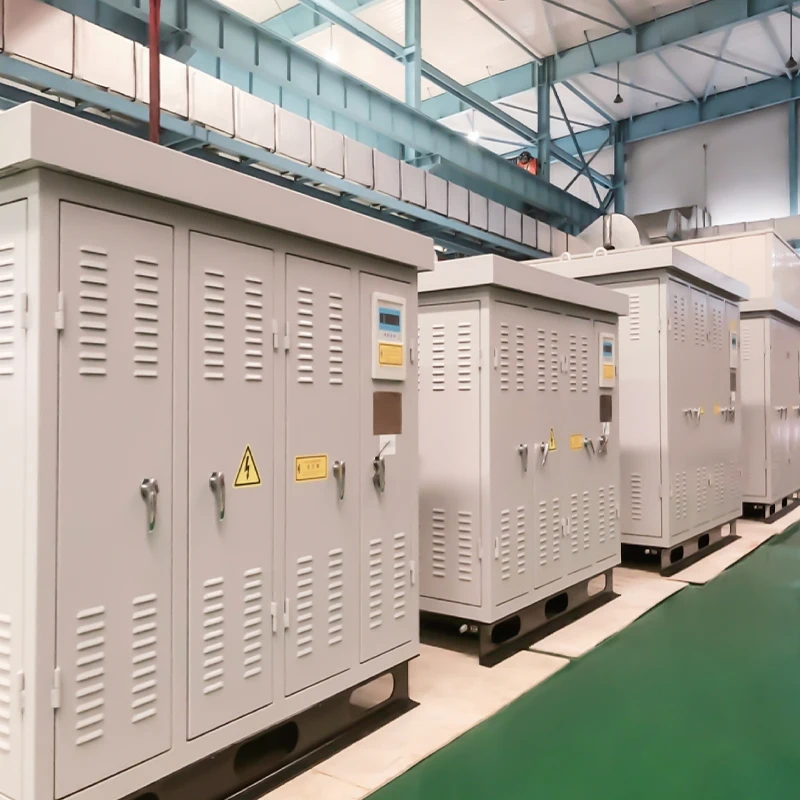

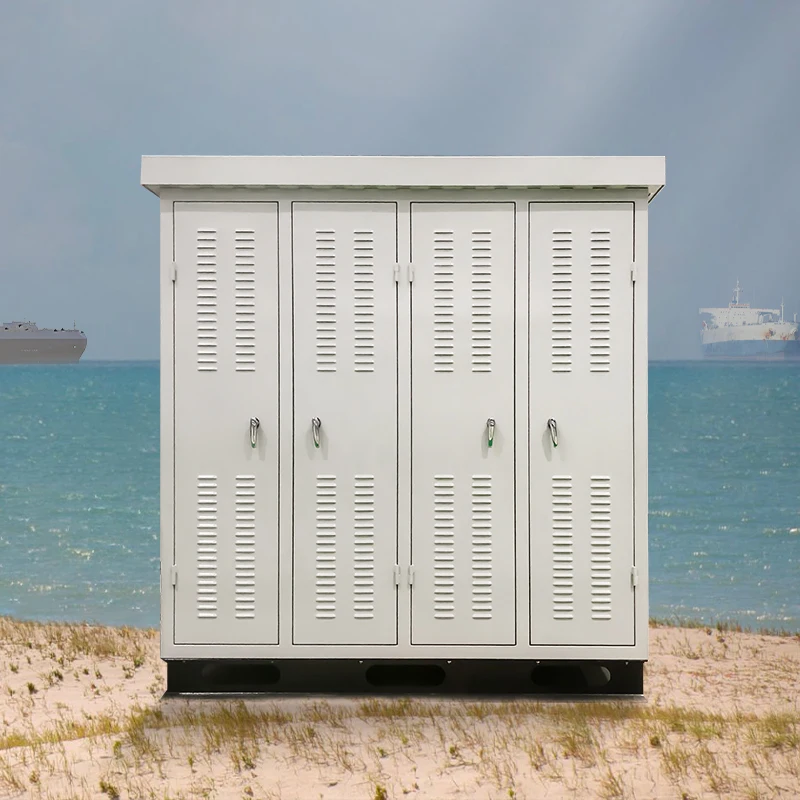

Our marine (offshore platform) transformers are dry-type self-cooling (air-cooled, water-cooled) transformers. They can be used for power supply, lighting, isolation, propulsion, and rectification in power grids.

Insulation classes include B, F, and H. Low-voltage transformer capacity is up to 8000kVA, with voltage levels below 1kV. Medium-voltage and offshore platform transformer capacity is up to 8000kVA, with voltage levels below 10kV.

Our professional technical team is capable of designing and producing products with various special specifications according to customer requirements.

certificates.pngCEEG certificates 2-evku.jpg
