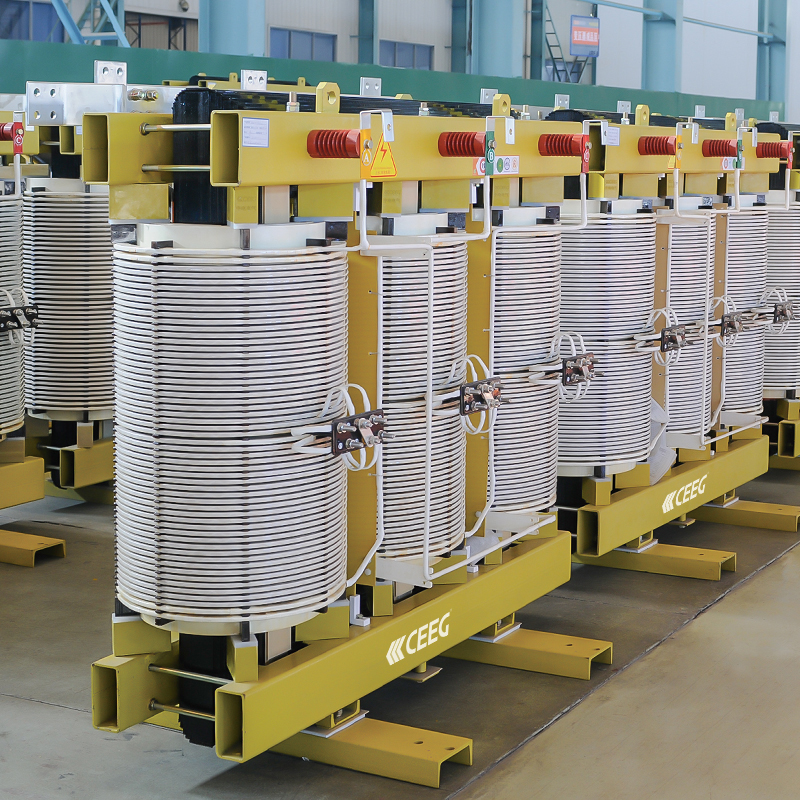

CEEG SG(B) Series Non-encapsulated Dry-Type Transformers (Class H/Class C)

file:
Brand: CEEG
Phase: Three Phase
Type: Dry Type Transformer
Winding Type: Multi-winding Transformer
Vector Group: Dyn11 or Yyn0
Rated Capacity: 100kVA - 3150kVA
Service: Customized Service
Nature of Business: Manufacturer
Request A Quote

performance features-khpu.pngdry type transformer 12.jpg

Safety: The SGB series transformers are free of combustible resins, and halogens, and are non-combustible during use, making them flame-resistant. They do not explode or release toxic gases, posing no harm to the environment, other equipment, or human health. They are insensitive to temperature, dust, and pollution, exhibit low operational partial discharge, and are crack-resistant. These safety features are particularly suitable for locations with high fire safety requirements and dense populations.

Reliability: Both high and low-voltage windings employ NOMEX paper insulation material, undergo multiple VPI (Vacuum Pressure Impregnation) processes with solventless Class H impregnating varnish, and are cured through high-temperature baking. The products are rated at Class H (180°C), while the primary insulation material is Class C (220°C). They have ample overload capacity and excellent short-circuit resistance. They can operate at 20% overload for extended periods without the need for additional cooling. These products are especially suitable for places where power reliability is critical, such as factories, mines, medical facilities, data centers, and research institutions.

Energy Efficiency and Environmental Friendliness: Materials like copper and iron are easily recyclable at the end of the product's life cycle. NOMEX paper insulation material does not release toxic substances when burned. Other insulation materials are biodegradable and environmentally friendly. The products have low losses, contributing to energy efficiency.

Quality Assurance: The transformer body undergoes VPI (Vacuum Pressure Impregnation) technology with multiple cycles of impregnation and high-temperature curing. This significantly enhances insulation strength, reduces partial discharges, and, combined with efficient heat dissipation design and high-quality insulation materials, ensures a design service life of up to 30 years with minimal maintenance required. We offer a warranty period of up to 4 years.

Flexible Design: The production and manufacturing of SG(B) series transformers do not require molds, allowing for flexible, personalized design based on customer requirements and on-site environmental conditions. This results in short production cycles and timely deliveries.

SGB transformer.jpg

10kV SG(B)10 Dry Type Transformer

Rated high voltage:10kV,6kV

Rated low voltage:0.4kV

Vector Group:Dyn11 or Yyn0

Tapping Range:±2 x 2.5%, ±5%

Model

Uk%

Po(W)

(145℃)Pk(W)

Io%

LPA(AN)dB

Weight(kg)

SG10-100

4%

400

1370

1.8

43

675

SG10-125

4%

470

1610

1.6

43

720

SGB10-160

4%

540

1850

1.6

44

890

SGB10-200

4%

620

2200

1.4

44

920

SGB10-250

4%

720

2400

1.4

46

1050

SGB10-315

4%

880

3730

1

47

1410

SGB10-400

4%

980

4280

1

48

1565

SGB10-500

4%

1160

5230

1

49

1680

SGB10-630

4%

1340

6290

0.85

51

1800

SGB10-630

6%

1300

6400

0.85

51

1800

SGB10-800

6%

1520

7460

0.85

52

1930

SGB10-1000

6%

1770

8760

0.85

52

2355

SGB10-1250

6%

2090

10300

0.85

53

2940

SGB10-1600

6%

2450

12500

0.85

54

3540

SGB10-2000

6%

3050

15500

0.7

54

4050

SGB10-2500

6%

3600

18400

0.7

55

4790

SGB10-3150

6%

4030

19220

0.7

57

6215

10kV SGZ(B)10 Dry Type Transformer

Vector Group:Dyn11 or Yyn0

Tapping Range:±2 x 2.5%, ±5%

Model

Uk%

Po(W)

(145℃)Pk(W)

Io%

LPA(AN)dB

Weight(kg)

SGZB-250-10

4

720

2400

0.8

46

1400

SGZB-315/10

4

880

3730

0.7

46

1450

SGZB-400/10

4

980

4280

0.7

46

1965

SGZB-500/10

4

1180

5230

0.6

48

2145

SGZB-630/10

4

1340

6290

0.5

49

2320

SGZB-630/10

6

1300

6400

0.5

50

2205

SGZB-800/10

6

1520

7480

0.4

51

2635

SGZB-1000/10

6

1770

8760

0.4

51

2720

SGZB-1250/10

6

2090

10300

0.3

52

3225

SGZB-1600/10

6

2450

12500

0.3

53

4115

SGZB-2000/10

6

3050

15500

0.25

53

4365

SGZB-2500/10

6

3600

18400

0.25

54

5450

10kV SGB11 Dry Type Transformer

Rated high voltage:10kV,6kV

Rated low voltage:0.4kV

Vector Group:Dyn11 or Yyn0

Tapping Range:±2 x 2.5%, ±5%

Model

Uk%

Po(W)

(145℃)Pk(W)

Io%

LPA(AN)dB

Weight(kg)

SG11-100

4%

360

1310

1.6

42

875

SG11-125

4%

420

1550

1.4

42

920

SGB11-160

4%

480

1780

1.4

43

1090

SGB11-200

4%

560

2110

1.1

43

1120

SGB11-250

4%

640

2290

1.1

44

1250

SGB11-315

4%

790

3530

1

46

1610

SGB11-400

4%

880

4070

1

46

1765

SGB11-500

4%

1040

4970

1

47

1880

SGB11-630

4%

1200

5990

0.8

49

2000

SGB11-630

6%

1160

6070

0.8

49

2000

SGB11-800

6%

1360

7090

0.8

50

2130

SGB11-1000

6%

1590

8290

0.8

50

2555

SGB11-1250

6%

1880

9880

0.8

51

3140

SGB11-1600

6%

2200

11940

0.8

52

3740

SGB11-2000

6%

2720

14730

0.6

52

4250

SGB11-2500

6%

3200

17510

0.6

53

4990

production ability.png CEEG production ability 31.jpgOur production base covers an area of more than 600 acres (40 hectares) with extensive facilities and a total construction area of 180,000 square meters. We have a professional team of more than 1,000 employees. We have advanced transformer production and testing equipment here to ensure that we provide customers with high-quality power transformer products.
