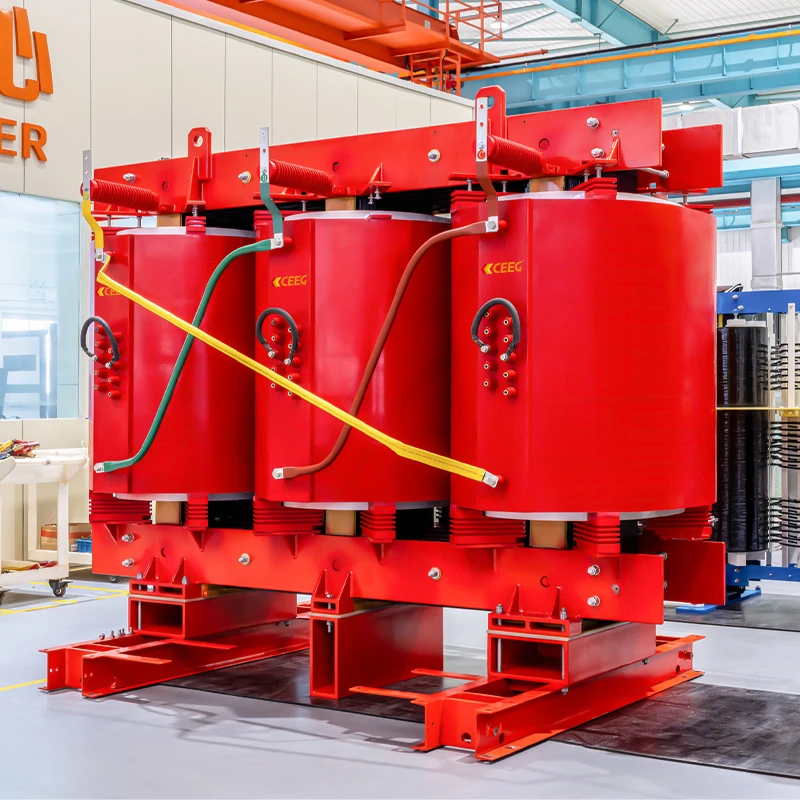

CEEG KKSG Series Dry-Type Transformer Three Phase Transformer for Mining

Brand: CEEG
Phase: Three Phase
Type: Dry Type Transformer
Core: Core-type Transformer
Winding Type: Multi-winding Transformer
Rated Capacity: 50kVA - 1600kVA
Service: Customized Service
Request A Quote

dry type transformer 1.jpg

The general-purpose dry-type transformer for mining complies with national standards and industry standards, including GB12173-2008, GB1094.11-2007, GB/T10228-2015, JB/T3955-2016, GB4208-2017, and more. It is suitable for power distribution equipment in underground mines where there is a risk of methane and coal dust explosions. It is primarily used in iron mines, copper mines, gold mines, aluminum mines, stone mines, rock mines, metal and non-metal mines, as well as in highway, railway, and tunnel applications.

Transformer Accessories

Enclosure: For indoor applications, considering heat dissipation and maintenance concerns, it's generally advisable not to add an enclosure if there is sufficient installation space. However, if the user needs, an enclosure can be provided, featuring multiple observation holes. The enclosure can also be painted in the user's preferred color.

Temperature Controller: All transformers are equipped with an overheating protection device. These protection devices detect and control the temperature of the transformer using a PT thermistor built into the low-voltage coil and output a digital signal via the RS232 / 485 communication interface.

Air Cooling Device:

1. The cooling method for the dry-type transformer can be divided into natural air cooling (AN) and forced air cooling (AF).

2. In natural air cooling (AN), under normal operating conditions, it can continuously deliver 100% of the rated capacity.

3. Under normal operating conditions, forced air cooling (AF) can achieve a 50% increase in capacity, suitable for various emergency overload or intermittent overload operations. Due to the greater increase in load loss and impedance resistance, continuous overload operation with forced air cooling (AF) is generally not recommended.

1. The KKSG enclosure is fabricated using high-quality structural steel and cold-rolled steel plates, ensuring high mechanical strength. The enclosure undergoes a shot-blasting process to remove surface rust layers and is coated with anti-corrosion paint, providing excellent corrosion resistance.

2. The transformer meets the environmental requirements for underground mining. It employs natural ventilation and automatic fan control devices for forced air cooling, effectively controlling the operating temperature of the transformer to ensure equipment safety.

3. Low losses, minimal partial discharge, low noise, and strong heat dissipation capability.

4. KKSG series products outperform national standards in terms of performance parameters.

5. Safety, flame resistance, fire prevention, pollution-free, and can be directly installed at the load center.

6. Maintenance-free, convenient installation, and low overall operating costs.

7. High reliability, Strong earthquake resistance, Moisture resistance and corrosion resistance.

transformer KKSG.jpg

KKSG-50~1600 General-Purpose Dry-Type Mine Transformer

Rated high voltage:6,6.3,10,10.5kV

Rated low voltage:1.2kV,0.69kV,0.4kV

Tapping Range:±2*2.5% etc.

Insulation Level:LI75 AC35/LI0 AC3

Model

UK

No-Load loss(W)

Load Loss(W)

No-Load Current(%)

Gauge (mm)

KKSG-50

4%

270

1000

2

550

KKSG-100

4%

400

1570

1.5

550

KKSG-160

4%

540

2130

1.3

550

KKSG-200

4%

620

2530

1.1

550

KKSG-250

4%

720

2760

1.1

550

KKSG-315

4%

880

3470

1

660

KKSG-400

4%

980

3990

1

660

KKSG-500

4%

1160

4880

1

660

KKSG-630

4% / 6%

1300

5960

0.85

820

KKSG-800

6%

1520

6960

0.85

820

KKSG-1000

6%

1770

8130

0.85

820

KKSG-1250

6%

2090

9690

0.85

820

KKSG-1600

6%

2450

11730

0.85

820

production ability.png CEEG production ability 31.jpgOur production base covers an area of more than 600 acres (40 hectares) with extensive facilities and a total construction area of 180,000 square meters. We have a professional team of more than 1,000 employees. We have advanced transformer production and testing equipment here to ensure that we provide customers with high-quality power transformer products.

We boast an array of cutting-edge equipment representing a high standard within the industry, including a complete set of shearing machines, fully automated winding machines, robot-operated stacking machines, the German-made Heydrich vacuum casting tank, vacuum impregnation systems, air cushion transport vehicles, a fully enclosed production workshop with a cleanliness level of 100,000, 20-ton vertical winding machines, 10-ton horizontal winding machines, coal-oil gas phase drying equipment, and a 200-ton overhead crane. We adopt the latest technology and processes to ensure our products comply with international standards and customer needs.

We have a strong production capacity of 30 million kVA power transformers per year. This means we can cater to all sizes and types of power transformer needs, from small applications to large energy projects. No matter what specifications our customers require, we deliver them on time and support them with high quality and reliability.
