Magnetic Core:

The iron core is fabricated from low-loss grain-oriented silicon steel sheets, either laser-scribed or HIB (high-flux, low-loss) grade oriented silicon steel. It is precision-cut using imported shearing equipment, then assembled using a 5-step or 7-step step-lap stacking process to minimize core loss and acoustic noise.

Winding Design:

Both high-voltage (HV) and low-voltage (LV) windings are wound with oxygen-free copper conductors (either round wire or copper foil). A specialized tensioning mechanism ensures that the turns are uniformly tightened circumferentially, preserving radial dimensional accuracy. This structural design ensures balanced force distribution, minimizes magnetostriction, and enhances both the short-circuit withstand capability and overload resilience of the transformer.

Energy-Saving Performance:

This is an energy-efficient transformer. The newly developed design series further reduces core (no-load) loss and load loss, improving overall efficiency.

Insulation Drying and Oil Filling:

The transformer undergoes vacuum drying, vacuum oil filtering, and vacuum oil filling processes. These steps ensure excellent insulation stability and long-term dielectric strength.

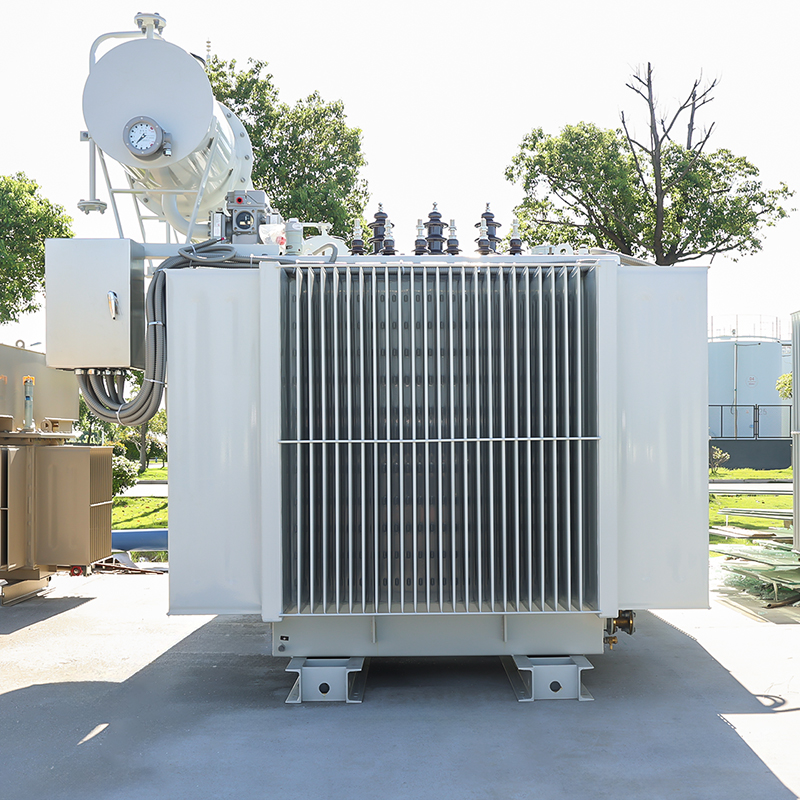

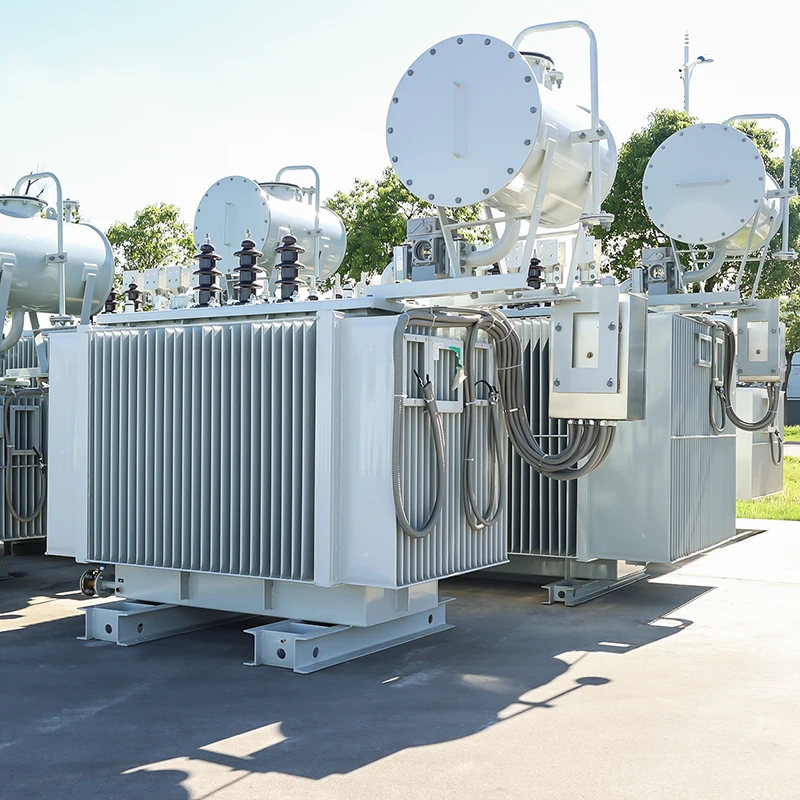

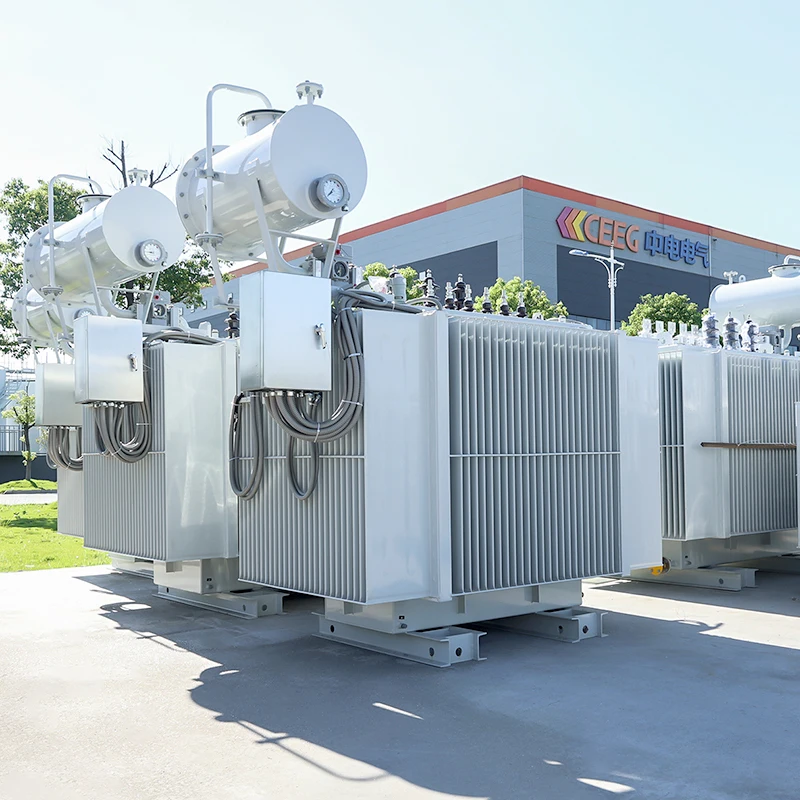

Tank & Cooling Structure:

The oil tank is fully sealed. Corrugated fins serve as the cooling mechanism: they accommodate thermal expansion and contraction of the insulating oil while isolating the oil from ambient air. This design prevents moisture ingress and oil deterioration, thereby improving reliability and enabling maintenance-free operation. Upon request, a hermetically sealed capsule-type oil conservator can also be provided.

Connection Flexibility:

The transformer supports a wide variety of terminal connections and tap-changer configurations, making it highly adaptable to different grid systems and network requirements.

Our production base covers an area of more than 600 acres (40 hectares) with extensive facilities and a total construction area of 180,000 square meters. We have a professional team of more than 1,000 employees. We have advanced transformer production and testing equipment here to ensure that we provide customers with high-quality power transformer products.

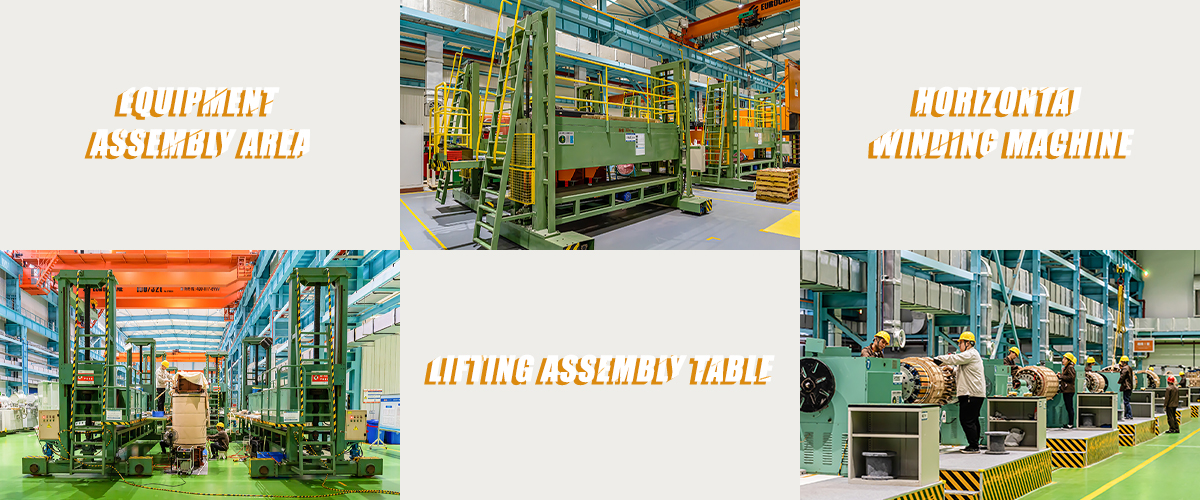

We boast an array of cutting-edge equipment representing a high standard within the industry, including a complete set of shearing machines, fully automated winding machines, robot-operated stacking machines, the Hedrch Vacuum Casting Equipment, vacuum impregnation systems, air cushion transport vehicles, a fully enclosed production workshop with a cleanliness level of 100,000, 20-ton vertical winding machines, 10-ton horizontal winding machines, coal-oil gas phase drying equipment, and a 200-ton overhead crane. We adopt the latest technology and processes to ensure that our products comply with international standards and customer needs.

We have a strong production capacity of 30 million kVA power transformers per year. This means we are able to cater to all sizes and types of power transformer needs, from small applications to large energy projects. No matter what specifications our customers require, we deliver them on time and support them with high quality and reliability.
