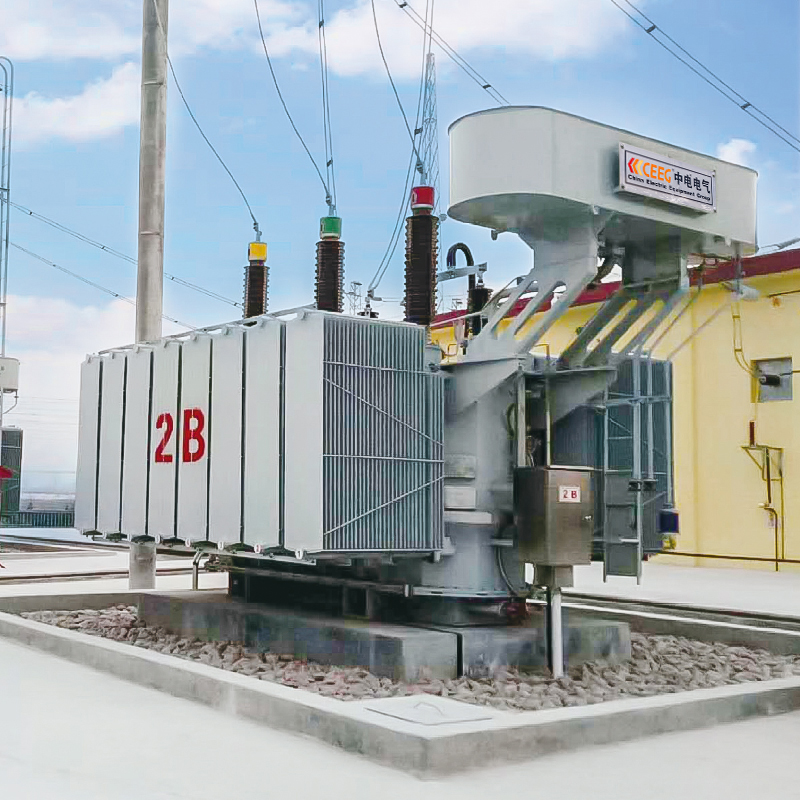

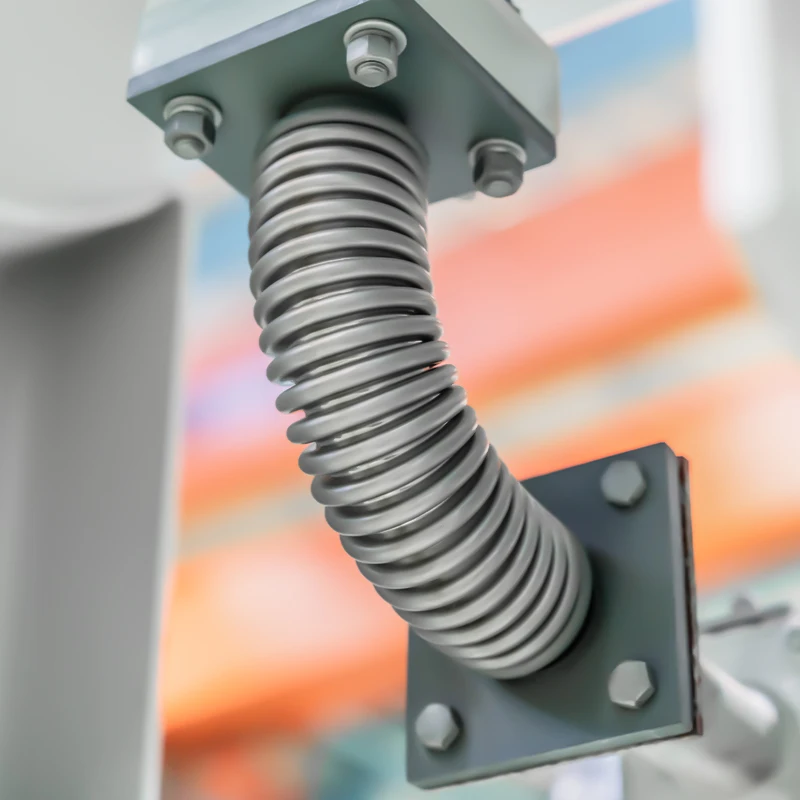

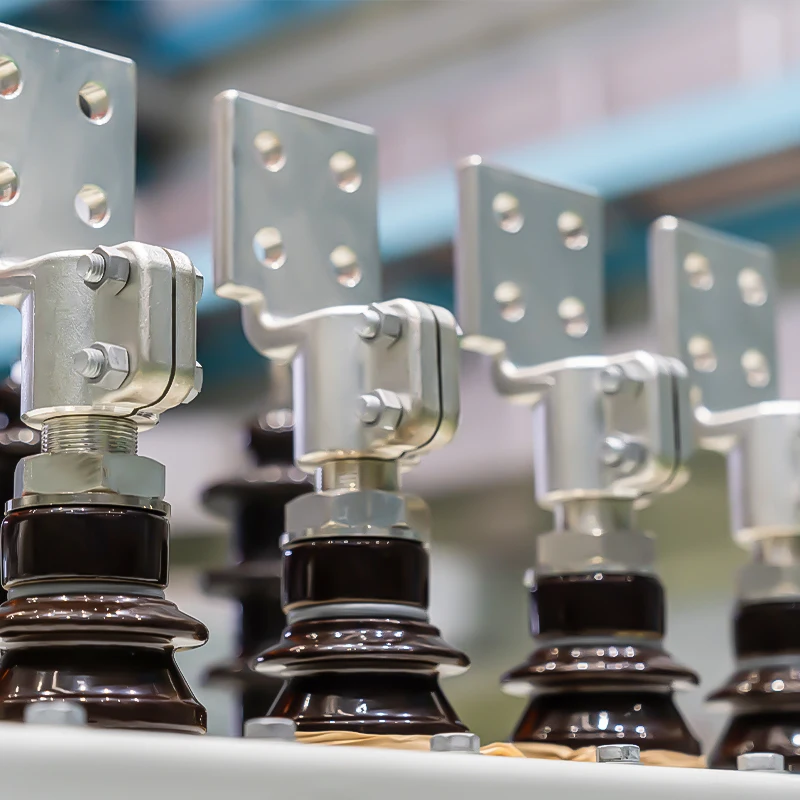

The commonly used connection methods for 110kV railway traction transformers include single-phase traction transformers and V/V connection traction transformers. Single-phase traction transformers are characterized by low-temperature rise, low losses, low noise, strong overload capacity, strong short-circuit resistance, and a suspended core-free structure. On the other hand, V/V connection traction transformers offer advantages such as high capacity utilization, simple structure, flexible capacity configuration, and ease of transportation.
110kV Railway Traction Transformer | |||||||
Rated Capacity( kVA) | Voltage combination and tap range | Connection Section | No-load Loss (kW) | Load Loss (kW) | No-load Current % | Impedance Voltage % | |
High Voltage (kV) | Low Voltage (kV) | ||||||
16000 | 110 ± 2 x 2.5 | 27.5 | I,i0 | 15 | 67 | 0.65 | 8.4 |
20000 | 110 ± 2 x 2.5 | 27.5 | I,i0 | 18 | 78 | 0.6 | 8.4 |
25000 | 110 ± 2 x 2.5 | 27.5 | I,i0 | 21 | 92 | 0.6 | 8.4 |
31500 | 110 ± 2 x 2.5 | 27.5 | I,i0 | 24 | 108 | 0.5 | 8.4 |
40000 | 110 ± 2 x 2.5 | 27.5 | I,i0 | 29 | 129 | 0.45 | 8.4 |
50000 | 110 ± 2 x 2.5 | 27.5 | I,i0 | 34 | 151 | 0.45 | 8.4 |
110kV Vv Connected Traction Transformer | |||||||
Rated Capacity( kVA) | Voltage combination and tap range | Connection Section | No-load Loss (kW) | Load Loss (kW) | No-load Current % | Impedance Voltage % | |
High Voltage (kV) | Low Voltage (kV) | ||||||
20000 | 110 ± 2 x 2.5 | 27.5 | Vv | 19.5 | 110 | 0.7 | 10.5 |
25000 | 110 ± 2 x 2.5 | 27.5 | Vv | 23 | 130 | 0.6 | 10.5 |
31500 | 110 ± 2 x 2.5 | 27.5 | Vv | 27.5 | 155 | 0.6 | 10.5 |
40000 | 110 ± 2 x 2.5 | 27.5 | Vv | 33 | 185 | 0.6 | 10.5 |
CEEG is a professional transformer manufacturer! Our production base covers an area of more than 600 acres (40 hectares) with extensive facilities and a total construction area of 180,000 square meters. We have a professional team of more than 1,000 employees. We have advanced transformer production and testing equipment here to ensure that we provide customers with high-quality power transformer products.
We boast an array of cutting-edge equipment representing a high standard within the industry, including a complete set of shearing machines, fully automated winding machines, robot-operated stacking machines, the Hedrch Vacuum Casting Equipment, vacuum impregnation systems, air cushion transport vehicles, a fully enclosed production workshop with a cleanliness level of 100,000, 20-ton vertical winding machines, 10-ton horizontal winding machines, coal-oil gas phase drying equipment, and a 200-ton overhead crane. We adopt the latest technology and processes to ensure our products comply with international standards and customer needs.
We have a strong production capacity of 30 million kVA power transformers per year. This means we can cater to all sizes and types of power transformer needs, from small applications to large energy projects. No matter what specifications our customers require, we deliver them on time and support them with high quality and reliability.
