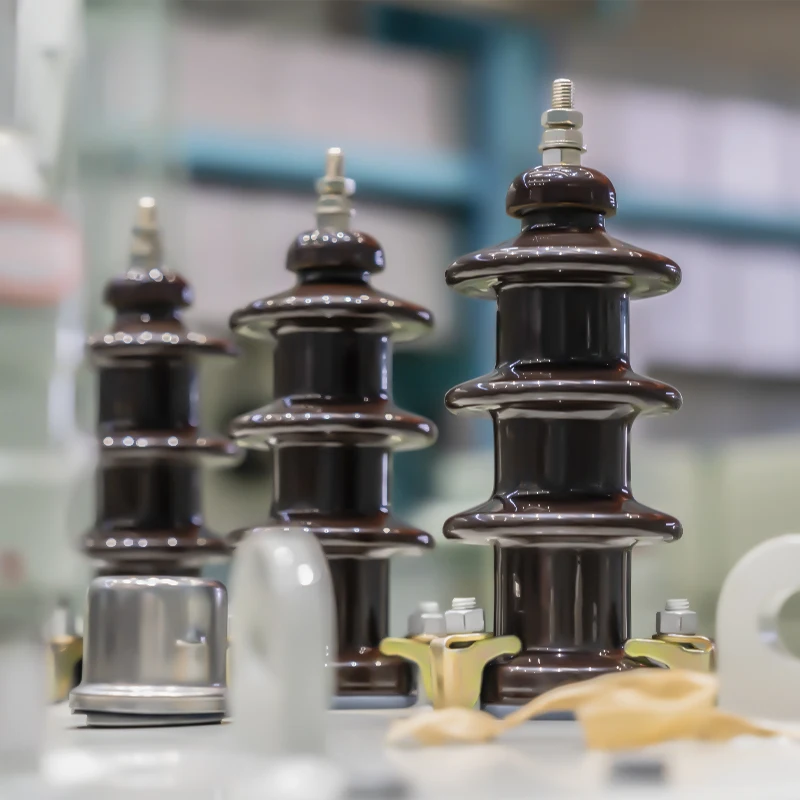

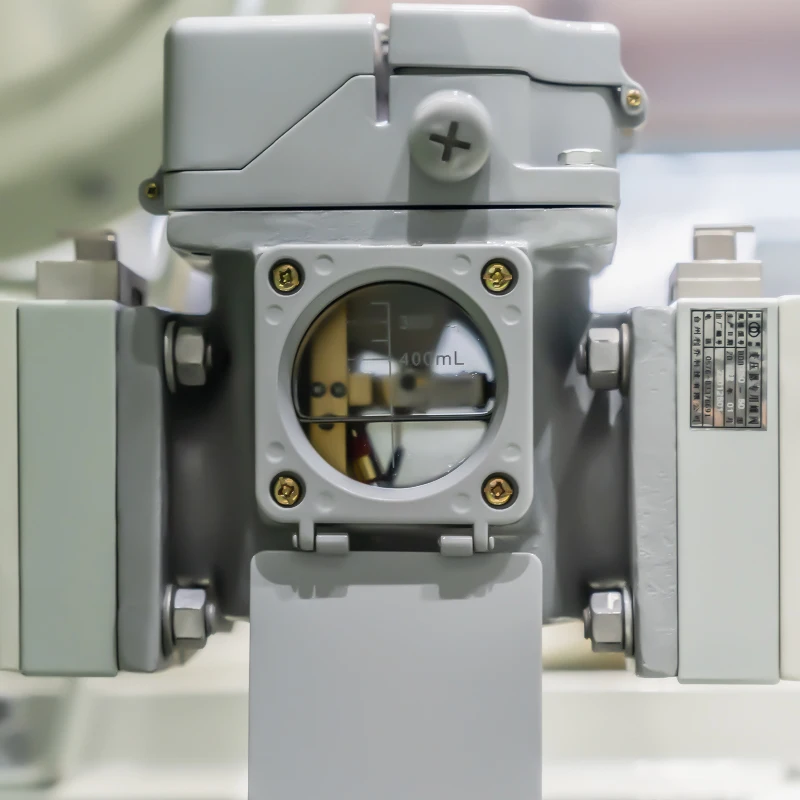

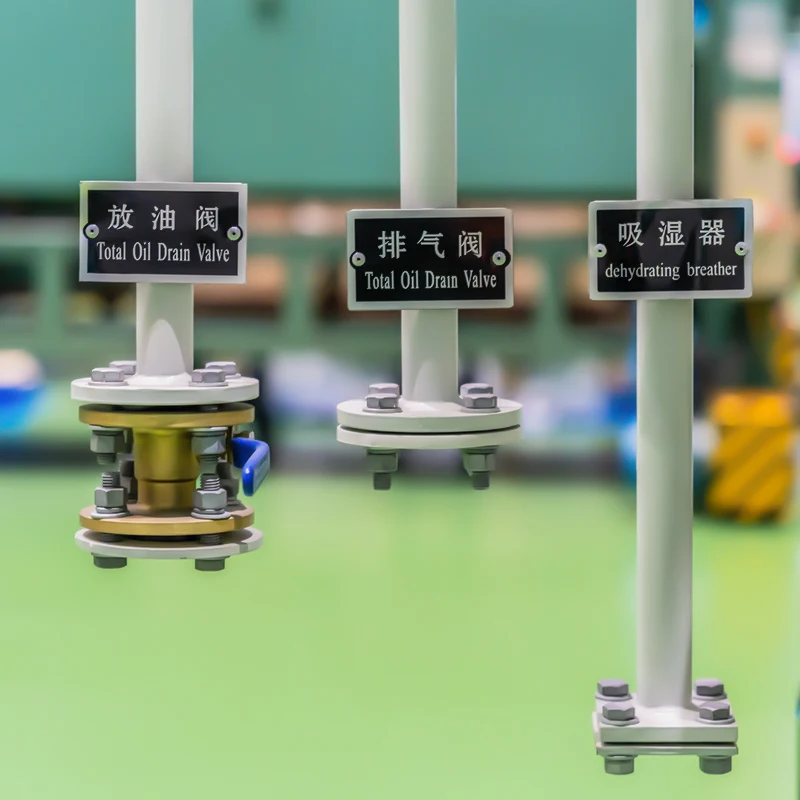

CEEG 220kV VV Connection Traction Transformer (Single-Phase)

Brand: CEEG
Type: Oil Filled Transformer
Vector Group: V,v0
High Voltage (kV): 220±2 x 2.5
Low Voltage (kV): 27.5
Service: Customized Service
Nature of Business: Manufacturer
Request A Quote

The VV connection transformer is one of the forms of transformers used directly for railway traction. It represents a specific application of single-phase transformers in railway traction. This type of transformer has two structural forms:

Three-column structure: In this form, two single-phase transformers are placed in the same oil tank. Each of the coils of the two single-phase transformers is wound around the side columns of two iron cores. The central column of the iron core does not have coils but forms the magnetic flux path.

Four-column structure: In this arrangement, two transformers are used in conjunction. This form provides options for both equal and unequal capacity between the two single-phase transformers.

These variations in structural forms allow for flexible configurations to meet specific requirements in railway traction applications.

certificates.pngCEEG certificates.jpg

Single Phase 220kV Vv Connected Traction Transformer

Rated Capacity( kVA)

Voltage combination and tap range

Vector Group

No-load Loss (kW)

Load Loss (kW)

No-load Current %

Impedance Voltage %

High Voltage (kV)

Low Voltage (kV)

10000+12500

220±2 x 2.5

27.5

V,v0

28

97

0.7

12

12500+16000

220±2 x 2.5

27.5

V,v0

33

117

0.7

12

12500+20000

220±2 x 2.5

27.5

V,v0

38

128

0.7

12

16000+20000

220±2 x 2.5

27.5

V,v0

40

139

0.65

12

20000+25000

220±2 x 2.5

27.5

V,v0

49

159

0.6

12

production ability.png CEEG production ability 21.jpgCEEG is a professional transformer manufacturer! Our production base covers an area of more than 600 acres (40 hectares) with extensive facilities and a total construction area of 180,000 square meters. We have a professional team of more than 1,000 employees. We have advanced transformer production and testing equipment here to ensure that we provide customers with high-quality power transformer products.

We boast an array of cutting-edge equipment representing a high standard within the industry, including a complete set of shearing machines, fully automated winding machines, robot-operated stacking machines, the Hedrch Vacuum Casting Equipment, vacuum impregnation systems, air cushion transport vehicles, a fully enclosed production workshop with a cleanliness level of 100,000, 20-ton vertical winding machines, 10-ton horizontal winding machines, coal-oil gas phase drying equipment, and a 200-ton overhead crane. We adopt the latest technology and processes to ensure our products comply with international standards and customer needs.

We have a strong production capacity of 30 million kVA power transformers per year. This means we can cater to all sizes and types of power transformer needs, from small applications to large energy projects. No matter what specifications our customers require, we deliver them on time and support them with high quality and reliability.
