CEEG 110KV Oil-Filled Traction Transformer

Brand: CEEG
Rated Voltage: 110kV, 220kV
Type: Oil-Filled Transformer
Fit For: Railway
Service: Customized Service
Nature of Business: Manufacturer
Request A Quote

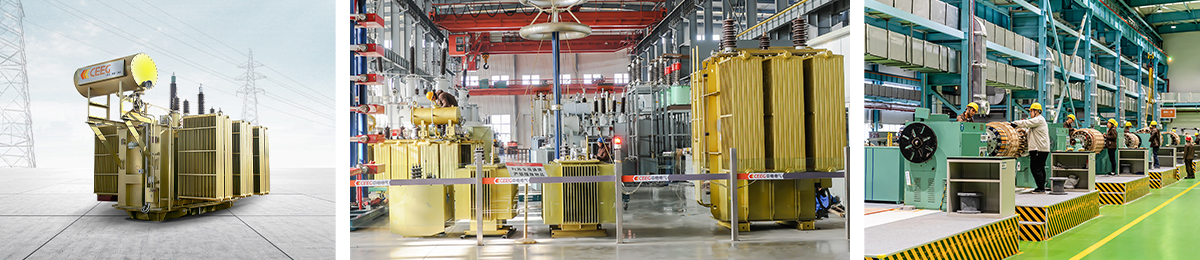

CEEG oil-immersed transformer.jpg

1. Low Loss: No-load losses are reduced by 15%-20% compared to the national standard GB64511-2008, and load losses are reduced by 5% compared to the national standard.

2. Low Noise: The self-cooling noise level is below 60dB, which is nearly 20dB lower than the national standard. Special noise level requirements can be customized upon request.

3. Low Partial Discharge: The entire production process of 110kV products is dust-free, with all internal metal and insulation components rounded, and partial discharge levels controlled below 100pc.

Strong Short-Circuit Capability: The 110kV transformer is certified for strong short-circuit resistance and high reliability.

4. Aesthetic Appearance: Fully polished and rust-free, with powder electrostatic spray paint achieving a home appliance finish, and wide-sheet fin-type radiators.

5. Leak-Proof: All sealing components are made of acrylic materials and utilize one-time molding technology with no interfaces.

Structural Features: NOMEX Insulation + Transformer Insulation Oil

1. High-Temperature Resistance for Enhanced Safety: Can operate continuously at 100% load in an ambient temperature of 40°C; on average, the continuous load rating is 20% higher than conventional oil-immersed transformers at the same temperature.

2. Low Loss for Greater Energy Efficiency: Achieves 20% energy savings compared to ordinary oil-immersed transformers.

3. Maintenance-Free for Improved Environmental Friendliness: Sealing components have the same lifespan as the transformer, resulting in 20% energy savings compared to regular transformers.

Parameters Table-mrqt.png

SSZ13-6300~90000/110kV Double Winding OLTC Power Transformer

Rated Capacity(kVA)

Voltage Combination

Vector Group

No-Load Loss (kW)

Load Loss
(kW) (75℃)

No-Load Current (%)

Impedance (%)

High Voltage (kV)

Tapping Range

Low Voltage (kV)

6300

110±8x1.25%

35

38.5

6.3
6.6
10.5
11

YNyn0d11

7.8

45

0.89

high-medium
10.5
high-low
17-18
medium-low
6.5

8000

9.4

53

0.89

10000

11

62

0.84

12500

12.7

73

0.84

16000

15.8

90

0.79

20000

18.6

106

0.79

25000

22

125

0.74

31500

26.2

148

0.74

40000

31.4

178

0.68

50000

37.1

212

0.68

63000

44.2

255

0.63

90000

57.7

333

0.48

SS13-6300~90000/110kV Oil-Immersed Three Winding Non Excitation Voltage Regulating Power Transformers

Rated Capacity(kVA)

Voltage Combination

Vector Group

No-Load Loss (kW)

Load Loss
(kW) (75℃)

No-Load Current (%)

Impedance (%)

High Voltage (kV)

Medium Voltage(kV)

Low Voltage (kV)

Step-up

Step-down

6300

110±2 x 2.5%

121±2 x 2.5%

35
38.5

6.3
6.6
10.5
11

YNyn0d11

7.2

45

45

high-medium
17-18
high-low
10.5
medium-low
6.5

high-medium
10.5
high-low
17-18
medium-low
6.5

8000

8.6

53

53

10000

10.2

62

62

12500

12

73

73

16000

14.4

90

90

20000

17

106

106

25000

20.2

125

125

31500

24

148

148

40000

28.6

178

178

50000

33.8

212

212

63000

40.2

255

255

90000

52.5

333

333

Notice:
1. The capacities of the high, medium, and low voltage windings are allocated as (100/100/100)%.
2. The vector group can be YNd11y10 as required.
3. The medium voltage can be chosen to differ from the values in the table or from the tapping points according to user requirements.
4. The maximum current tapping is at the -5% tapping position.

production ability.pngCEEG production ability 21-cidu.jpg

CEEG is a professional transformer manufacturer! Our production base covers an area of more than 600 acres (40 hectares) with extensive facilities and a total construction area of 180,000 square meters. We have a professional team of more than 1,000 employees. We have advanced transformer production and testing equipment here to ensure that we provide customers with high-quality power transformer products.

We boast an array of cutting-edge equipment representing a high standard within the industry, including a complete set of shearing machines, fully automated winding machines, robot-operated stacking machines, the Hedrch Vacuum Casting Equipment, vacuum impregnation systems, air cushion transport vehicles, a fully enclosed production workshop with a cleanliness level of 100,000, 20-ton vertical winding machines, 10-ton horizontal winding machines, coal-oil gas phase drying equipment, and a 200-ton overhead crane. We adopt the latest technology and processes to ensure that our products comply with international standards and customer needs.

We have a strong production capacity of 30 million kVA power transformers per year. This means we can cater to all sizes and types of power transformer needs, from small applications to large energy projects. No matter what specifications our customers require, we deliver them on time and support them with high quality and reliability.

certificates.png CEEG certificates 2-evku.jpg
